Main features
All models in this series are waterproof when connected and can function properly after correct assembly with compatible cables
Achieve an IP68 (minimum IP66) waterproof rating; this series of connectors is primarily designed for outdoor applications.
● Secure and rapid plug-and-lock system
● The wiring methods include soldering and printed board pin connections (straight or bent pins) as options
● Available in straight and 90° elbow styles
The positioning pin structure is used for connector alignment
● Multiple positioning pins available to prevent misinsertion between similar connectors
● 360° all-round shielding effect, resistant to electromagnetic interference
● Multi-core types 2~64 cores
● High-density installation, space-saving
● Waterproof connection (IP68)
Technical Specifications
Insertion and removal cycles: >5,000 times
Humidity: Up to 95% at a temperature of 60°C
Temperature range: -40℃~150℃ (vacuum watertight type: -40℃~125℃)
Vibration: 10~2000Hz, 15g
Mechanical shock: 100g.6ms
Salt spray test: 48 hours
Protection Class: IP68 (In Plugged State)
Shielding effectiveness: >75dB at 10MHz; >40dB at 1MHz

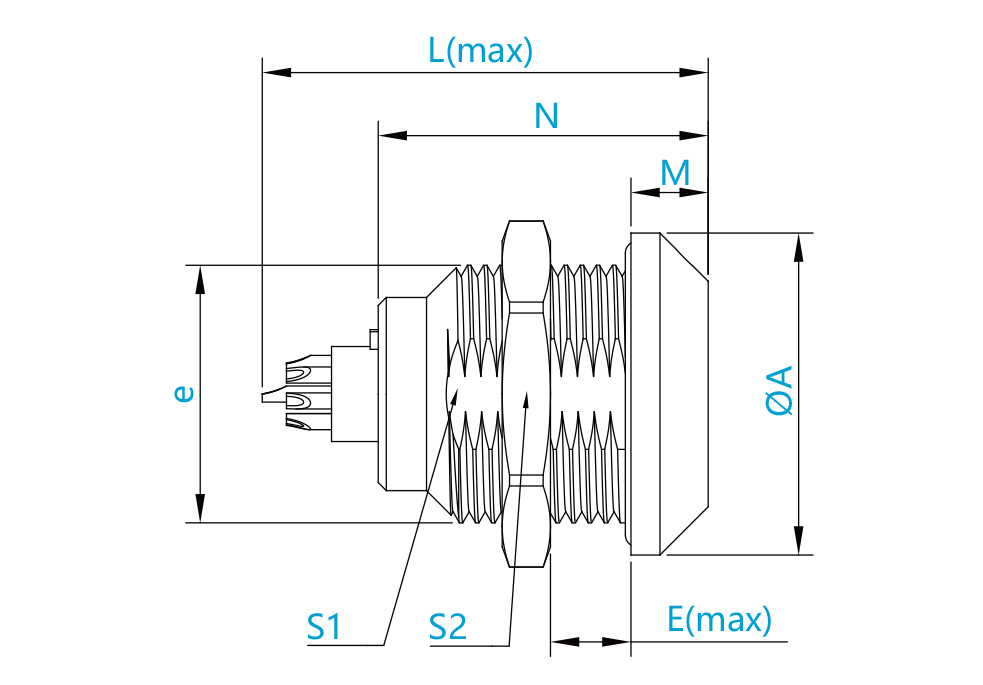

ZGG series fixed socket/nut fixing/positioning pin positioning/rear lock installation
| Number | External dimensions of connector (mm) |
| Model | Shell number | A
| e | E | L | M | N | S1 | S2 |
| ZGG | 0K | 18 | M14×1.0 | 5
| 22 | 4 | 15.5 | 12.6 | 17 |
1K
| 20 | M16×1.0 | 7 | 28 | 4.8 | 20.5
| 14.5 | 19 |
| 2K | 25 | M20×1.0 | 8 | 30 | 5.5 | 23 | 18.5 | 24 |
| 3K | 31 | M24×1.0 | 10 | 36 | 6 | 28 | 22.5 | 30 |
| 4K | 37 | M30×1.0 | 10 | 41 | 6.5 | 32 | 28.5 | 36 |
| 5K | 55 | M45×1.5 | 10 | 48 | 9 | 36.5 | 42.5 | / |
