Main Features
● Safe and fast plug-in self-locking system
● The wiring methods include soldering and printed board pin cores (straight or bent pins) to choose from
● Available in both straight and 90 ° angled versions
● Positioning pin structure is used for connector alignment
● Multiple positioning pin options to avoid mixed insertion between similar connectors
● Comprehensive shielding effect, anti electromagnetic interference
● Multi core type 2~64 cores
● High density installation, saving space
Technical Specifications
Insertion and extraction times:>5000 times
Humidity: up to 95% at a temperature of 60 ℃
Temperature range: -40 ℃~150 ℃ (vacuum water tight type -40 ℃~125 ℃) Vibration: 10~2000Hz, 15g
Mechanical impact: 100g · 6ms
Salt spray test: 48 hours
Protection level: IP50 (plugged in state)
Shielding effect:>75dB at 10MHz;>40dB at 1MHz
TGG series straight plug/positioning pin positioning/cable clamp/standard tail cover

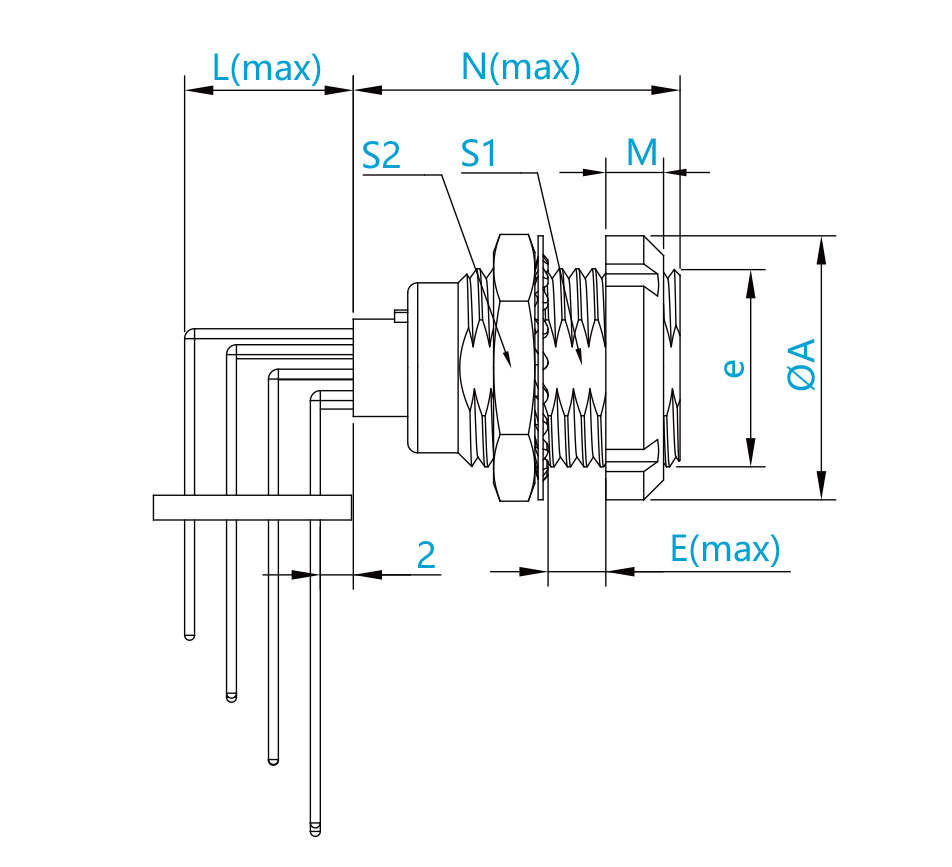

| Number | External dimensions of connector (mm) |
| Model | Shell number | A
| e | E | L | M
| N | S1
| S2 |
| ZCG | 00B | 8 | M7x0.5 | 4.5 | 5.04 | 2.5 | 13.7 | 6.2 | 9 |
0B
| 10 | M9x0.6
| 6 | 10.12 | 2.5 | 17.8
| 8.2 | 11 |
| 1B | 16 | M12x1.0 | 6 | 12.66 | 3.5 | 20.2 | 10.5 | 14 |
2B
| 20 | M15x1.0 | 6.5 | 22.28 | 3.5 | 20.2 | 13.5 | 17 |
| 3B | 24 | M18x1.0 | 9 | 22.28 | 4.5 | 25.2 | 16.5 | 22 |
