Main Features
● Safe and fast plug-in self-locking system
● The wiring methods include soldering and printed board pin cores (straight or bent pins) to choose from
● Available in both straight and 90 ° angled versions
● Positioning pin structure is used for connector alignment
● Multiple positioning pin options to avoid mixed insertion between similar connectors
● Comprehensive shielding effect, anti electromagnetic interference
● Multi core type 2~64 cores
● High density installation, saving space
Technical Specifications
Insertion and extraction times:>5000 times
Humidity: up to 95% at a temperature of 60 ℃
Temperature range: -40 ℃~150 ℃ (vacuum water tight type -40 ℃~125 ℃) Vibration: 10~2000Hz, 15g
Mechanical impact: 100g · 6ms
Salt spray test: 48 hours
Protection level: IP50 (plugged in state)
Shielding effect:>75dB at 10MHz;>40dB at 1MHz

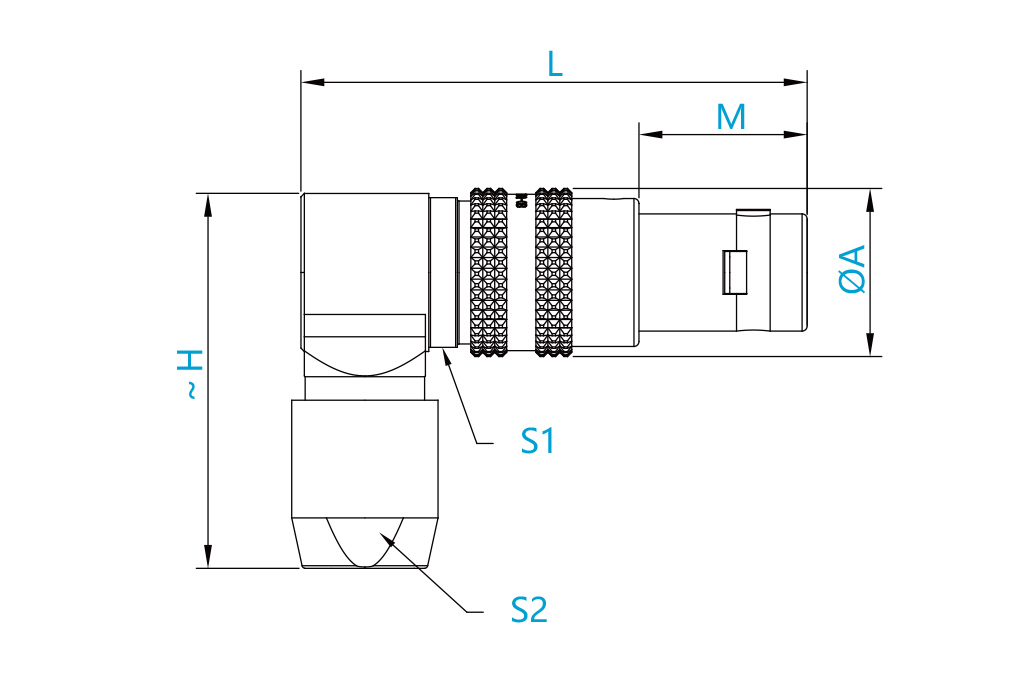

TGG series straight plug/positioning pin positioning/cable clamp/standard tail cover
| Number | External dimensions of connector (mm) | Cable outer diameter Ø (mm) |
| Model | Shell number | A
| H | L | M
| S1 | S2
| Min | Max |
| TSG | 0B | 10 | 22.4 | 30.1 | 10 | 9 | 7.4 | 2.2 | 5 |
1B
| 12 | 26.4
| 36.5 | 11 | 11 | 9 | 2.5 | 6 |
| 2B | 16.5 | 34.5 | 44 | 12 | 15 | 13 | 3.2 | 9 |
| 3B | 20 | 39.2 | 52.4 | 15 | 19 | 15 | 4.2 | 11 |
