Main Features
● Safe and fast plug-in self-locking system
● The wiring methods include soldering and printed board pin cores (straight or bent pins) to choose from
● Available in both straight and 90 ° angled versions
● Positioning pin structure is used for connector alignment
● Multiple positioning pin options to avoid mixed insertion between similar connectors
● Comprehensive shielding effect, anti electromagnetic interference
● Multi core type 2~64 cores
● High density installation, saving space
Technical Specifications
Insertion and extraction times:>5000 times
Humidity: up to 95% at a temperature of 60 ℃
Temperature range: -40 ℃~150 ℃ (vacuum water tight type -40 ℃~125 ℃) Vibration: 10~2000Hz, 15g
Mechanical impact: 100g · 6ms
Salt spray test: 48 hours
Protection level: IP50 (plugged in state)
Shielding effect:>75dB at 10MHz;>40dB at 1MHz

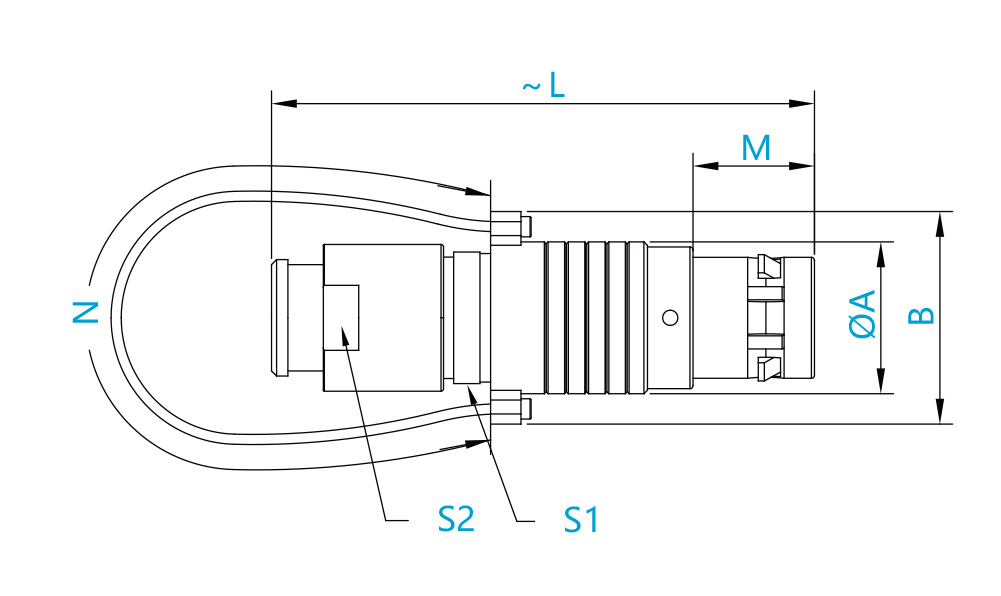

TGG series straight plug/positioning pin positioning/cable clamp/standard tail cover
| Number | External dimensions of connector (mm) | Cable outer diameter Ø (mm) |
| Model | Shell number | A
| B | L | M
| N | S1
| S2 | Min | Max |
| TNG | 0B
| 9.5 | 15.5
| 38.5 | 10 | 140 | 8 | 7.4 | 2.2 | 5 |
| 1B | 12 | 18 | 46 | 11 | 140 | 10 | 9 | 2.5 | 6 |
2B
| 15 | 21
| 52 | 12 | 160 | 13 | 13 | 3.2 | 9 |
| 3B | 17.8 | 25 | 65 | 15 | 190 | 16 | 15 | 4.2 | 11 |
| 4B | 25 | 32 | 83 | 18.1 | 230 | 21 | 20 | 5.2 | 15 |
