Main Features

● Safe and fast plug-in self-locking system

● The wiring methods include soldering and printed board pin cores (straight or bent pins) to choose from

● Available in both straight and 90 ° angled versions

● Positioning pin structure is used for connector alignment

● Multiple positioning pin options to avoid mixed insertion between similar connectors

● Comprehensive shielding effect, anti electromagnetic interference

● Multi core type 2~64 cores

● High density installation, saving space

Technical Specifications

Insertion and extraction times:>5000 times

Humidity: up to 95% at a temperature of 60 ℃

Temperature range: -40 ℃~150 ℃ (vacuum water tight type -40 ℃~125 ℃) Vibration: 10~2000Hz, 15g

Mechanical impact: 100g · 6ms

Salt spray test: 48 hours

Protection level: IP50 (plugged in state)

Shielding effect:>75dB at 10MHz;>40dB at 1MHz

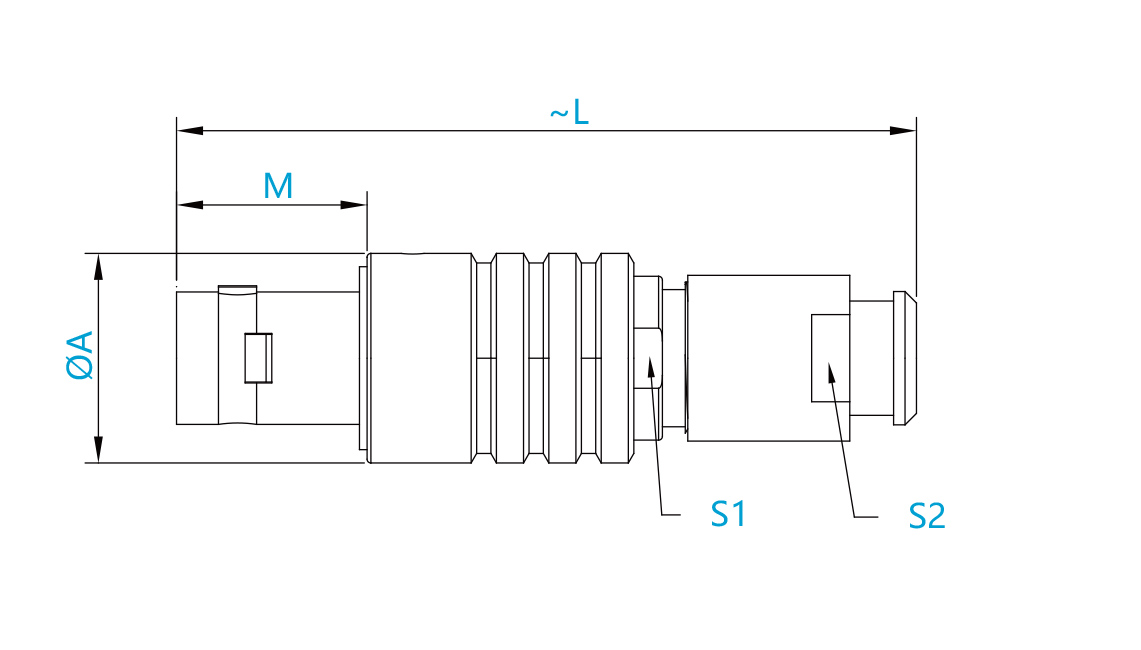

TGG series straight plug/positioning pin positioning/cable clamp/standard tail cover
