Main Features
● Safe and fast plug-in self-locking system
● The wiring methods include soldering and printed board pin cores (straight or bent pins) to choose from
● Available in both straight and 90 ° angled versions
● Positioning pin structure is used for connector alignment
● Multiple positioning pin options to avoid mixed insertion between similar connectors
● Comprehensive shielding effect, anti electromagnetic interference
● Multi core type 2~64 cores
● High density installation, saving space
Technical Specifications
Insertion and extraction times:>5000 times
Humidity: up to 95% at a temperature of 60 ℃
Temperature range: -40 ℃~150 ℃ (vacuum water tight type -40 ℃~125 ℃) Vibration: 10~2000Hz, 15g
Mechanical impact: 100g · 6ms
Salt spray test: 48 hours
Protection level: IP50 (plugged in state)
Shielding effect:>75dB at 10MHz;>40dB at 1MHz

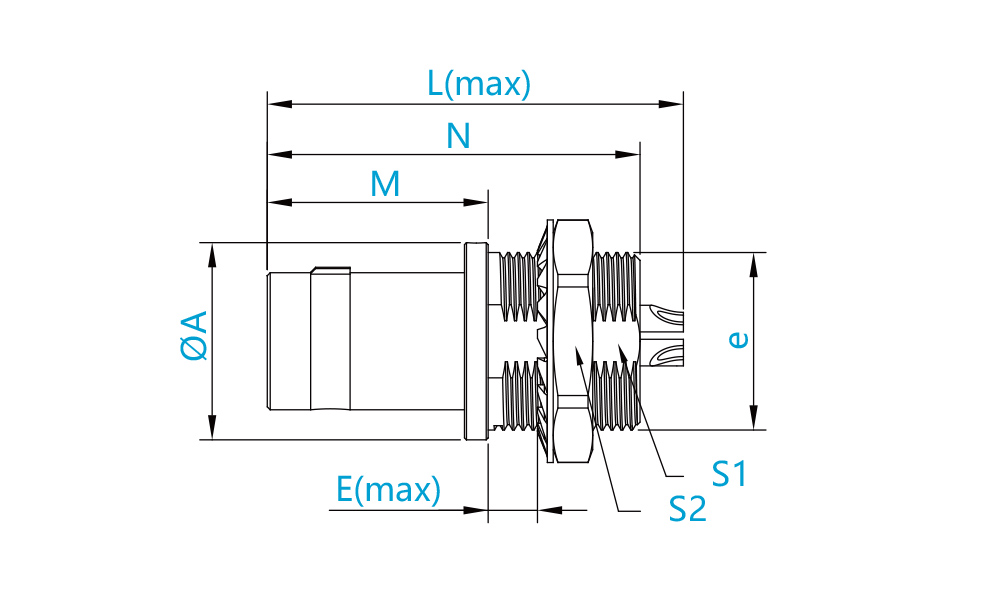

TGG series straight plug/positioning pin positioning/cable clamp/standard tail cover
| Number | External dimensions of connector (mm) |
| Model | Shell number | A
| e | E | L | M
| N | S1
| S2 |
| TAG | 00B | 8 | M7x0.5 | 2.9
| 18.1 | 9 | 15 | 6.2 | 9 |
0B
| 10 | M9x0.6
| 4.2 | 22.6 | 11.2 | 18.9
| 8.2 | 11 |
| 1B | 14 | M12x1.0 | 5.4 | 26.3 | 12.4 | 22.3 | 10.5 | 14 |
2B
| 18 | M15x1.0 | 6 | 29.4 | 14.2 | 23.9 | 13.5 | 17 |
3B
| 22 | M18x1.0 | 5.8 | 35.7 | 17 | 30.2 | 16.5 | 22 |
| 4B | 29 | M25x1.0 | 6.8 | 35.7 | 20.5 | 34.7 | 23.5 | 30 |
| 5B | 40 | M35x1.0 | 6.8 | 53 | 28 | 42.8 | 33.5 | / |
