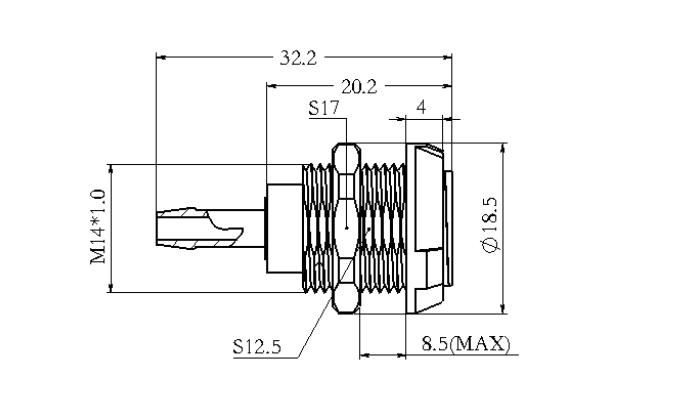

Product diagram

| Product model |
| SZCNT02-1PZ*01Q-** |
Note: * Please replace according to product naming rules
| Performance index | Performance parameter |
| Operating temperature | -30°C~+60°C |
| Leakage rate | When the gas path pressure difference is 400mmHg, it is not more than 2mmHg/min(0.4Kpa/min). |
| Mechanical life | >1000 times (connect and detach) |
