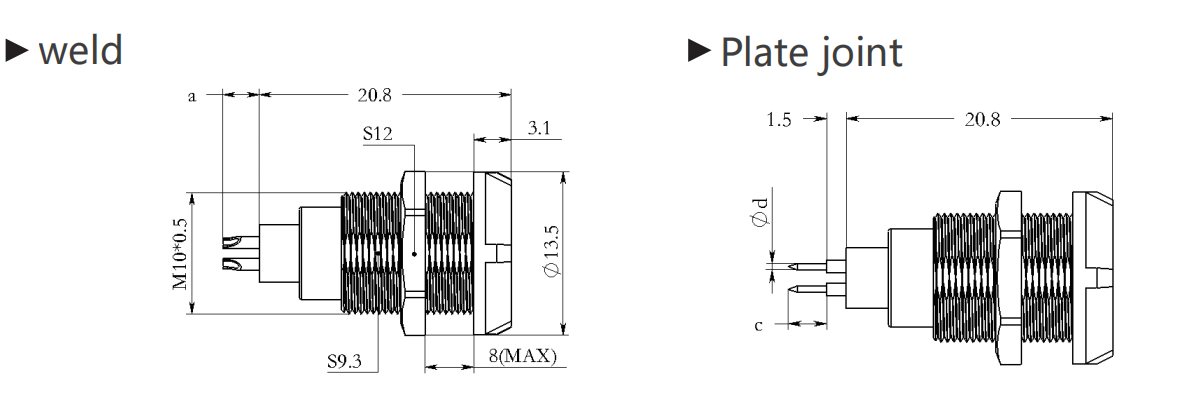

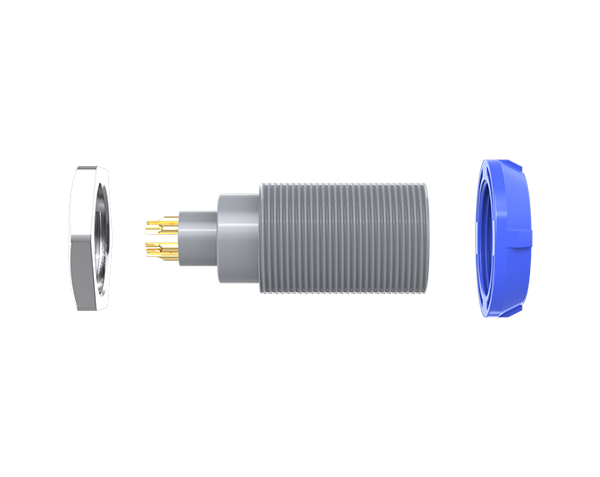

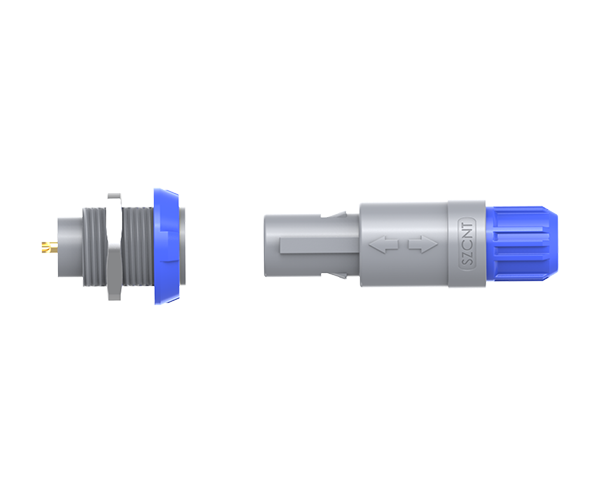

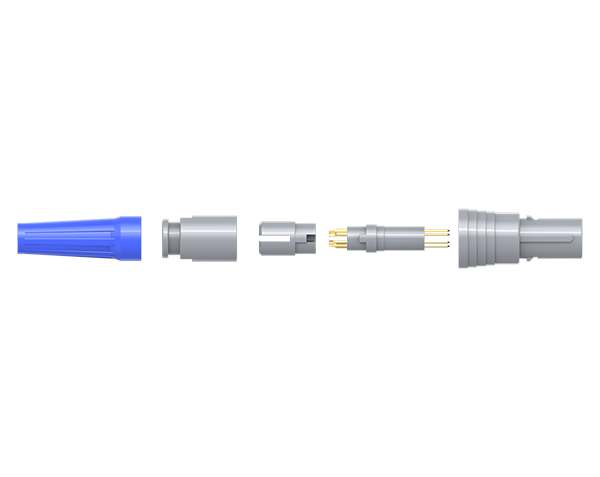

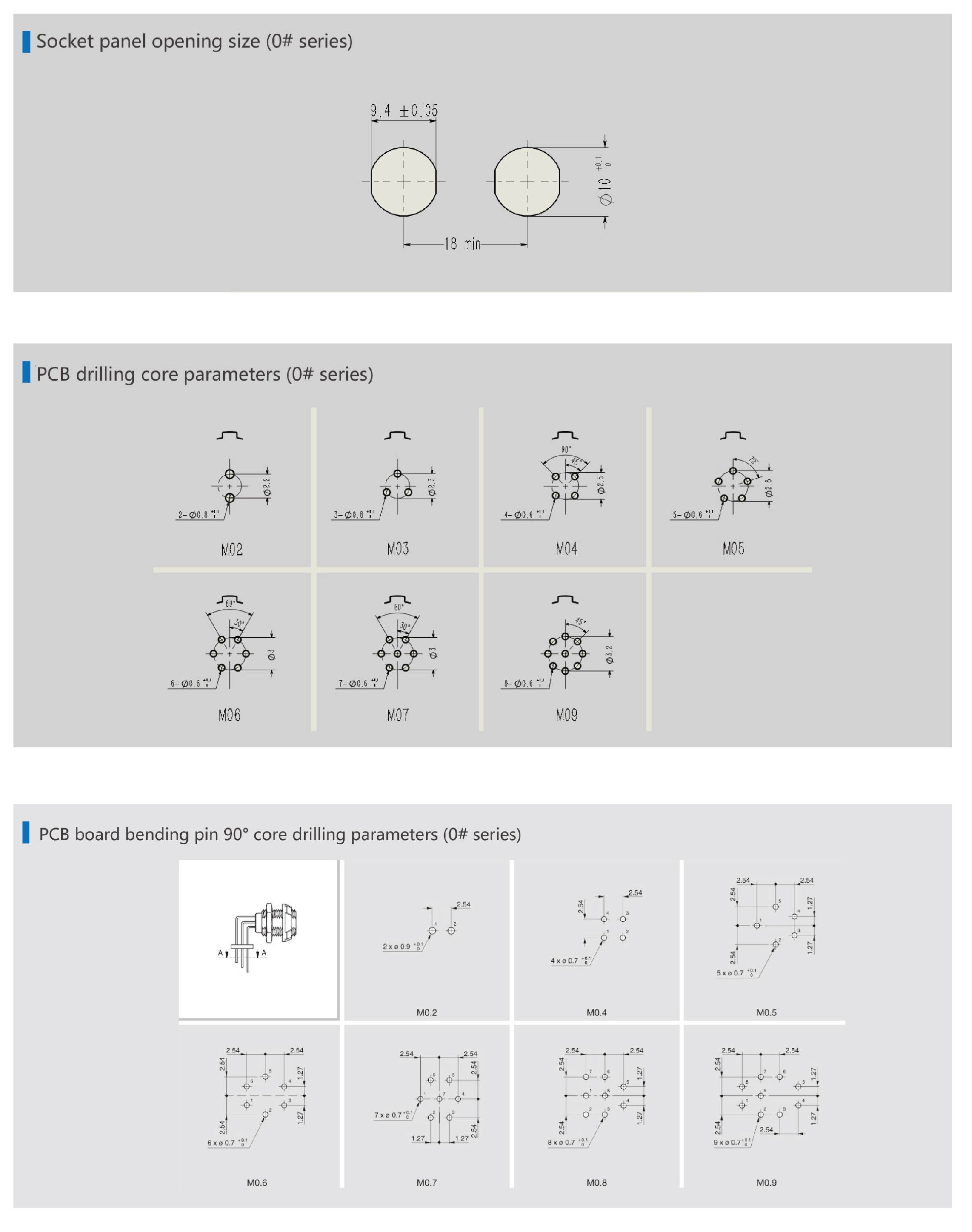

Product diagram
| Product model | Number of cores | Connection mode |
| Weld | Plate joint |
| a | b | c |
| SZCNT02-0PZ*02*-** | 02
| 3.0
| 5.0
| 0.7
|
| SZCNT02-0PZ*03*-** | 03 | 3.0 | 5.0 | 0.7 |
| SZCNT02-0PZ*04*-** | 04 | 3.0 | 3.0 | 0.5 |
| SZCNT02-0PZ*05*-** | 05 | 3.0 | 3.0 | 0.5 |
| SZCNT02-0PZ*06*-** | 06 | 3.0 | 3.0 | 0.5 |
| SZCNT02-0PZ*07*-** | 07 | 4.5 | 3.0 | 0.5 |
| SZCNT02-0PZ*09*-** | 09 | 4.5 | 3.0 | 0.5 |

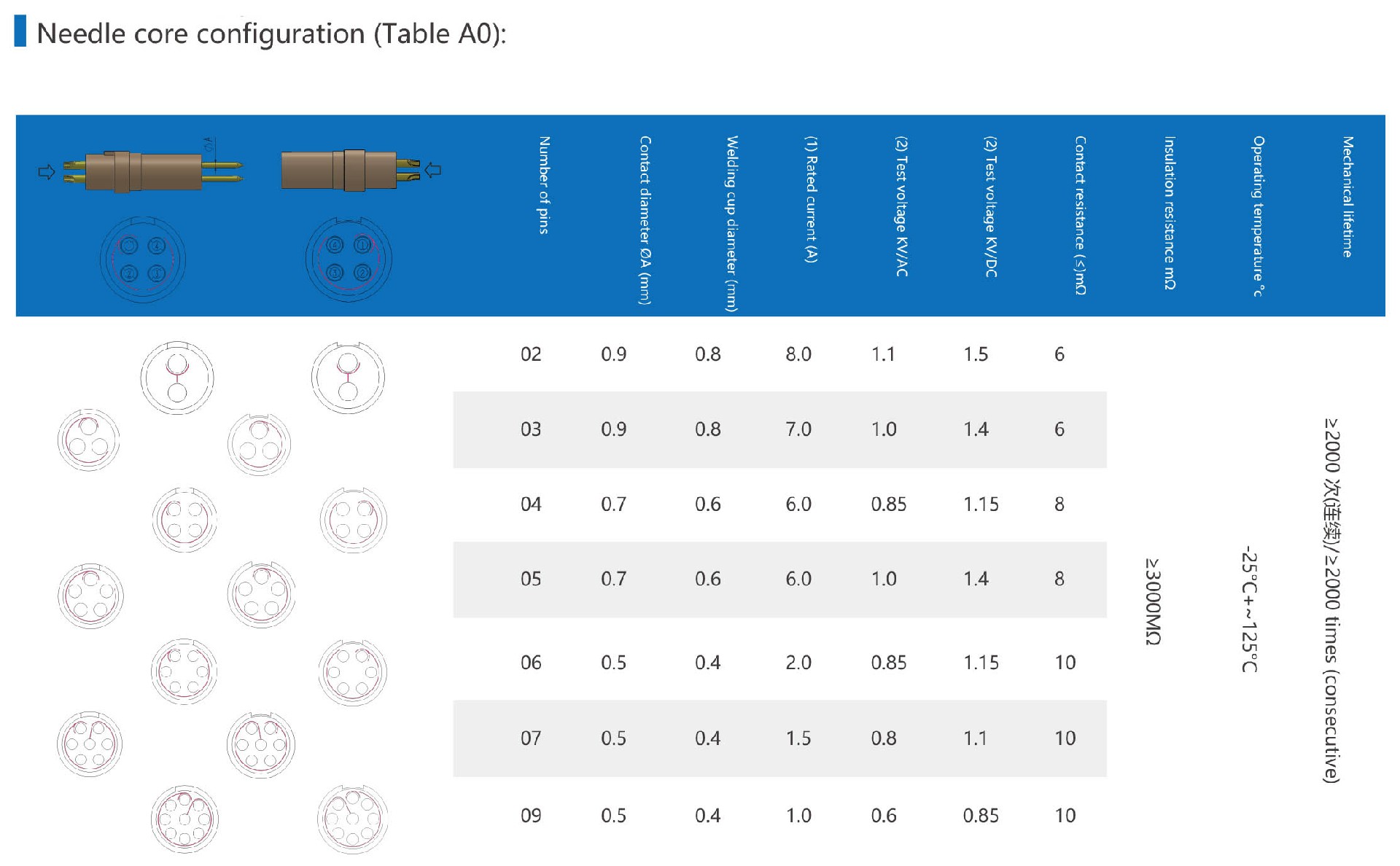

Rated current:
The rated current can be applied simultaneously to all pins of a connector. It is equivalent to increasing the average temperature of the connector by 40 ° C.
The current rating is given in the insulator type table for each series. If operating at a higher temperature, then the rated current value will be reduced according-ly.
When the insulator material used is operating at the highest operating temperature, the work is done
The current should approach zero.
In most cases, the rated current is related to the conductor size or to the printed line size.
Note: In general, the connector is not allowed to be disconnected when live.
Test voltage (Us)
The test voltage value is equivalent to 75% of the breakdown voltage. The test voltage of the experiment was increased at a speed of 500V/S for a duration of 1
minute.
The experiment was performed when the plug and socket were closed and only the plug end was pressurized.
Operating voltage (Us) : The following ratio column Us=Ue/3 is recommended
Note: In some applications, the safety of electrical equipment has very strict requirements for operating voltage. In this case, the value of the operating voltage is the creepage distance determined by the spatial distance between the live parts
