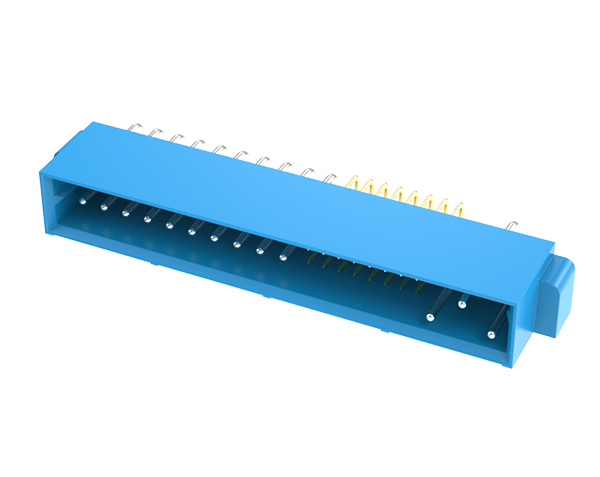

SZCNT01-P-47 Rectangular signal connector
SZCNT01-P-47 Rectangular signal connector
SZCNT01-P-47 Rectangular signal connector
Model P end (needle end): SZCNT01-P-47P
S end (hole end): SZCNT01-P-47S
Contact Us
Details
Operating Temperature-55°C~+125°CRelative Humidity98%（40°C）
Insulation Resistance≥3000 MΩ(Normal)Mechanical life500 times
Shell MaterialPET+30%GF UL94-V0
Contact memberSpecificationsElectric contact components
φ1.6mm22#
Quantity232
Rated current13A3A
Contact resistance

3.5mΩ

10mΩ
Voltage resistance value1500V1000V
Surface treatmentSilver plating on nickel baseNickel plating
Terminating formCrimp, plate
MaterialInsert pin, jackcopper
Crown springcopper
