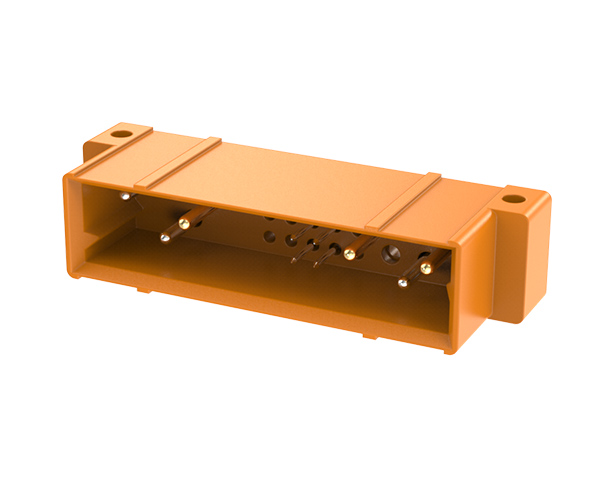

SZCNT25-G-24 Rectangular Signal Connector
SZCNT25-G-24 Rectangular Signal Connector
SZCNT25-G-24 Rectangular Signal Connector

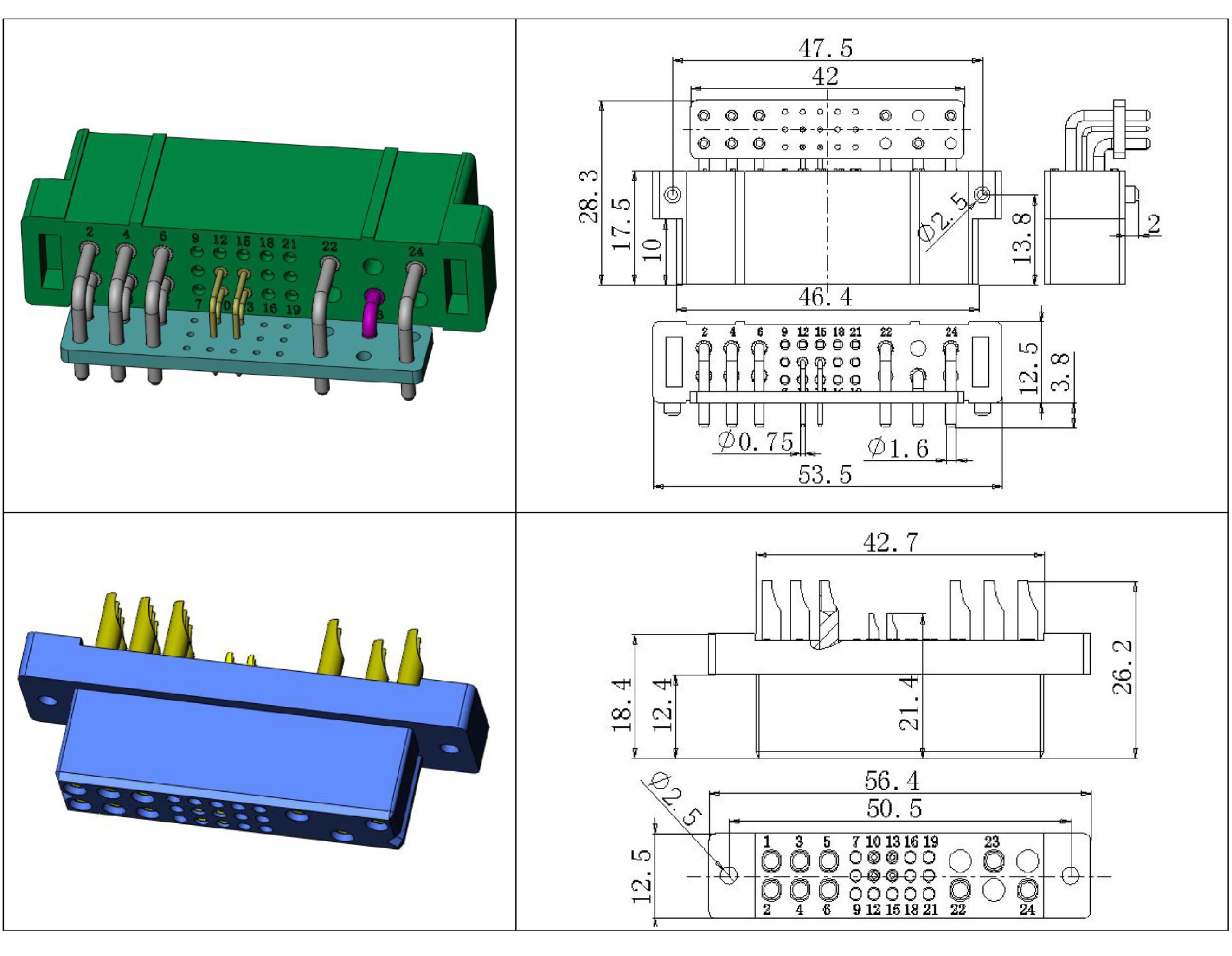

Model P end (needle end): SZCNT25-G-24TP
S end (hole end): SZCNT25-24ZS
Contact Us
Details
Operating Temperature-55°C~+125°CRelative Humidity98%（40°C）
Insulation Resistance≥3000 MΩ(Normal)Mechanical life1000 times
Shell MaterialPET+30%GF UL94-V0
Contact memberSpecificationsElectric contact components
φ1.6mm22#
Quantity915
Rated current13A3A
Contact resistance

3.5mΩ

10mΩ
Voltage resistance value1500V1000V
Surface treatmentNickel plating
End connection formWelding, plate joint
MaterialInsert pin, jackOrichalcum
Crown springBeryllium copper
