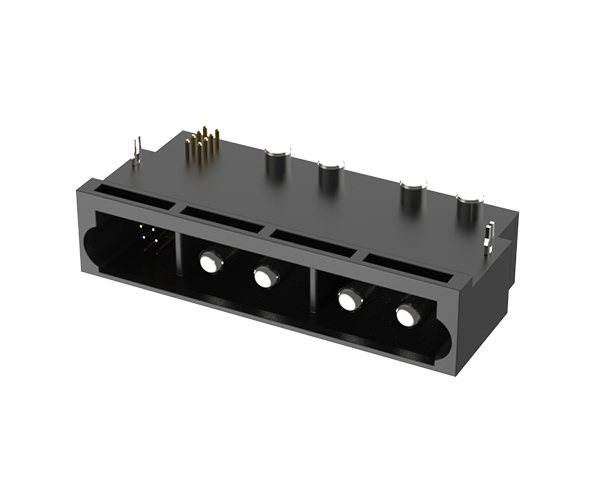

CNT01-E-12C Power Connector
CNT01-E-12C Power Connector
CNT01-E-12C Power Connector

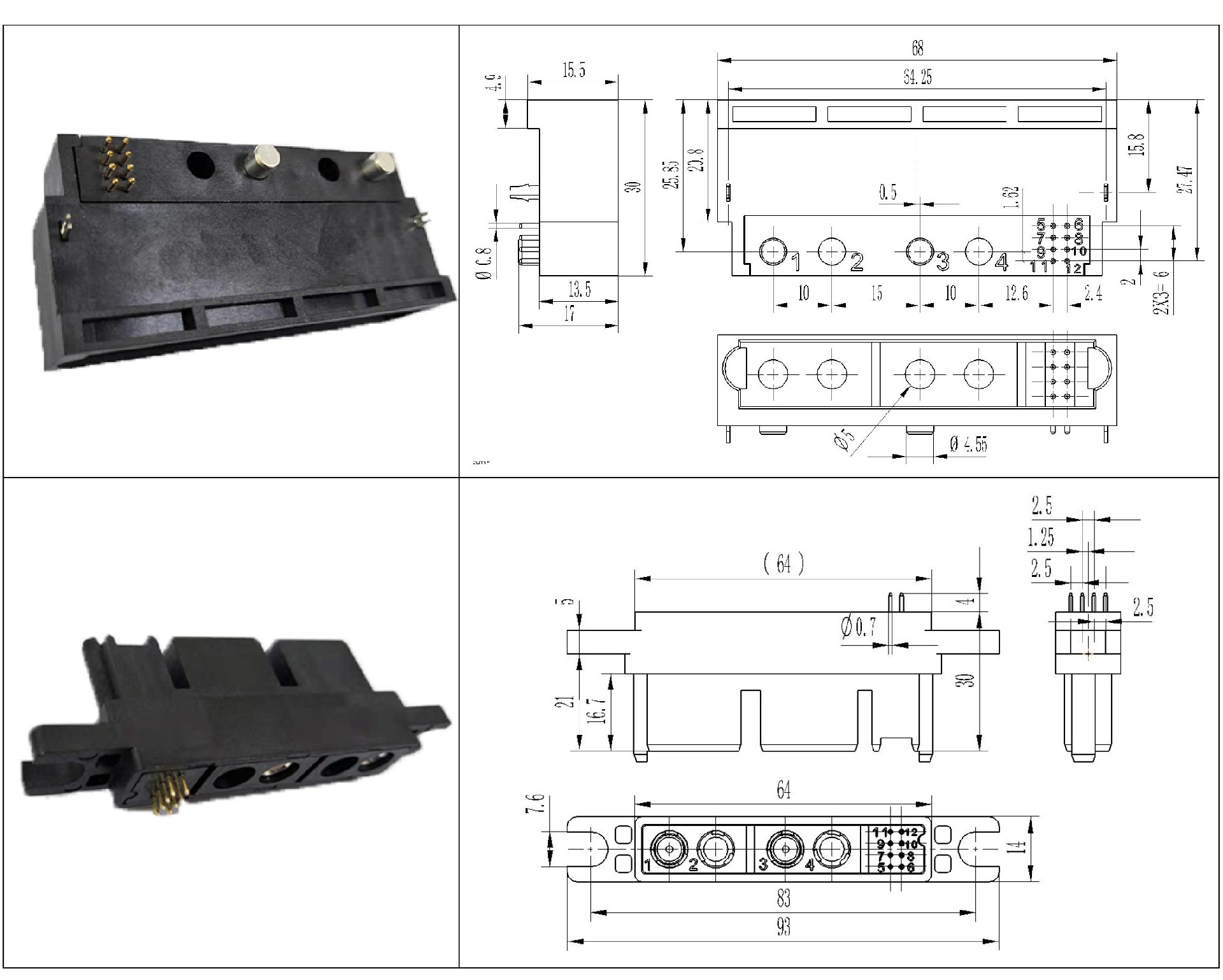

Model P end (needle end): SZCNT01-E-12C-P
S End (hole end): SZCNT01-E-12C-S
Contact Us
Details
Operating Temperature-55°C~+125°CRelative Humidity98%（40°C）
Insulation Resistance≥3000 MΩ(Normal)Mechanical life1000 times
Shell MaterialPET+30%GF UL94-V0
Contact memberSpecificationsPower contactSignal contact
Ø5.0mm22#
Quantity28
Rated current185A3A
Contact resistance

0.65mΩ

10mΩ
Voltage resistance value1500V1000V
Surface treatmentSilver plating on nickel baseNickel plating
End connection formWelding, crimping, PCB connection
MaterialInsert pin, jackOrichalcum
Crown springBeryllium copper
