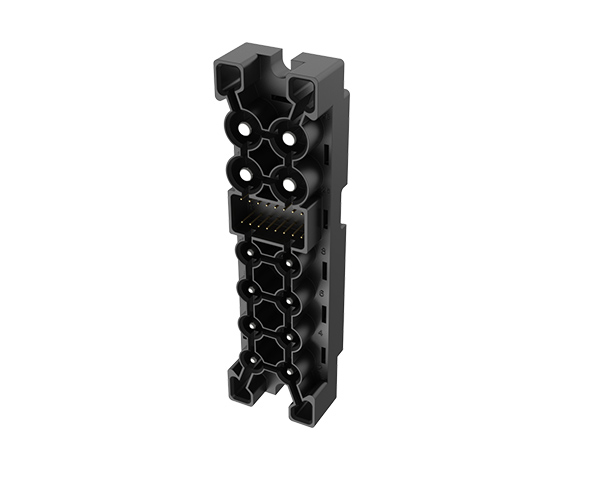

CNT01-28A Power Connector
CNT01-28A Power Connector
CNT01-28A Power Connector

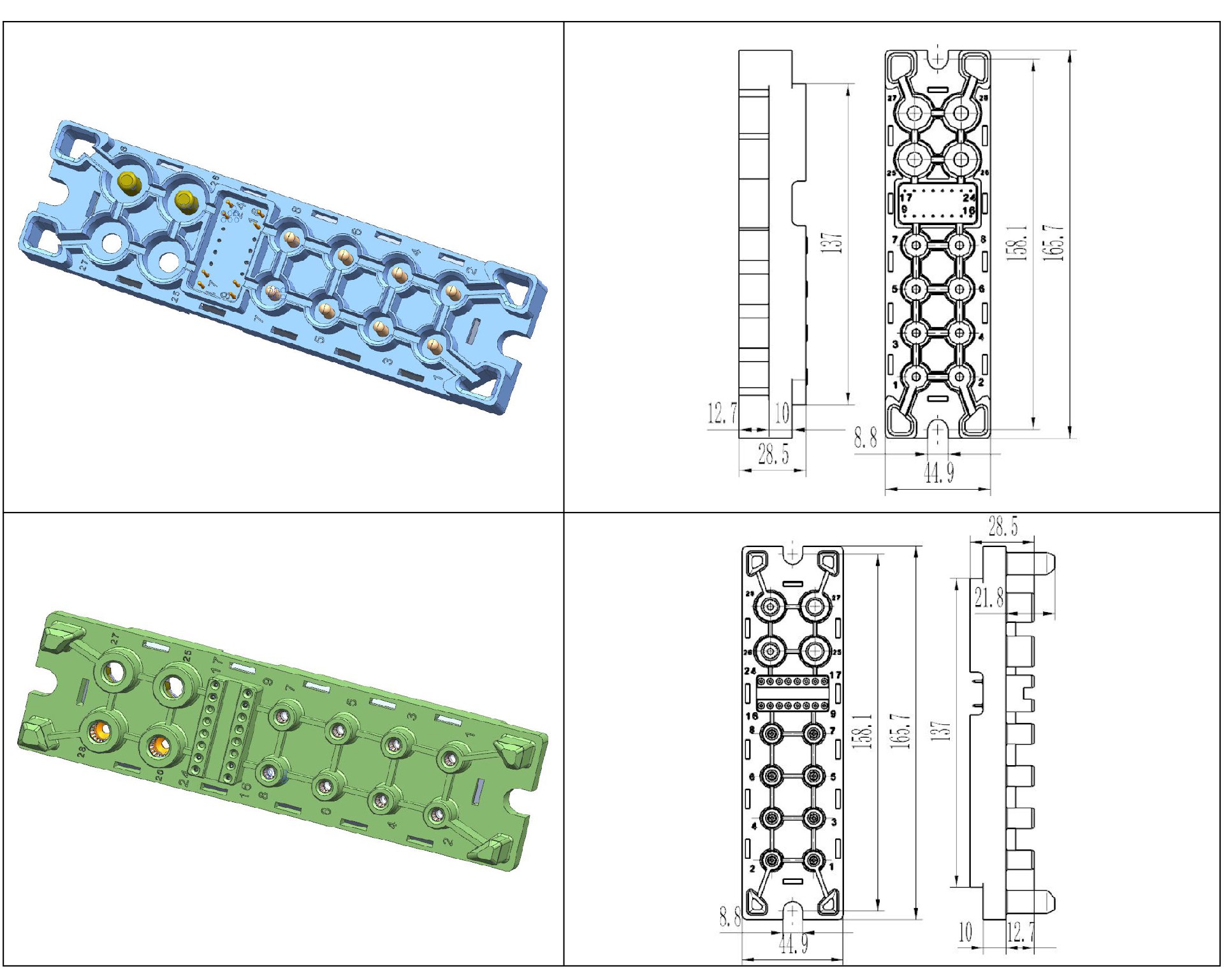

Model P end (needle end): SZCNT01-E-28A-P
S-end (hole end): SZCNT01-E-28A-S
Contact Us
Details
Operating Temperature-55°C~+125°CRelative Humidity98%（40°C）
Insulation Resistance≥3000 MΩ(Normal)Mechanical life1000 times
Shell MaterialPET+30%GF UL94-V0
Contact memberSpecificationsPower contactSignal contact
Ø6.35mmØ3.6mm22#
Quantity4816
Rated current120A75A5A
Contact resistance0.6mΩ

0.7mΩ

6.7mΩ
Voltage resistance value1500V1000V
Surface treatmentSilver plating on nickel baseNickel plating
End connection formWelding, crimping, plate bonding
MaterialInsert pin, jackOrichalcum
Crown springBeryllium copper
