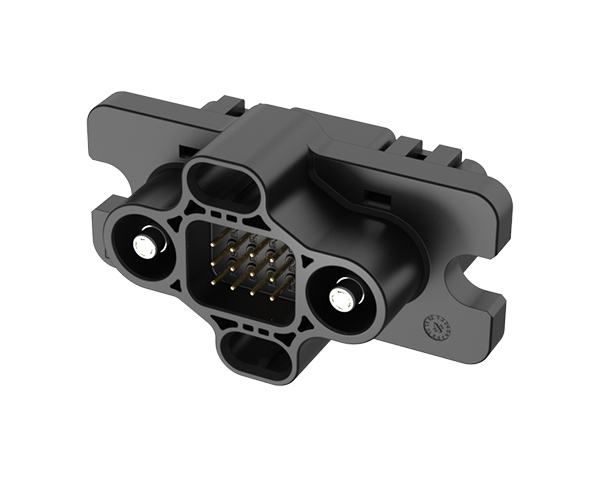

CNT01-E-2+12 Power Connector
CNT01-E-2+12 Power Connector
CNT01-E-2+12 Power Connector
Model P end (needle end): SZCNT01-E-2+12-P
S-end (hole end): SZCNT01-E-2+12-S
Contact Us
Details
Operating Temperature-55°C~+125°CRelative Humidity98%（40°C）
Insulation Resistance≥3000 MΩ(Normal)Mechanical life1000 times
Shell MaterialPET+30%GF UL94-V0
Contact memberSpecificationsPower contactSignal contact
8#22#
Quantity212
Rated current75A3A
Contact resistance

0.7mΩ

10mΩ
Voltage resistance value1500V1000V
Surface treatmentSilver plating on nickel baseNickel plating
Terminating formCrimp, plate joint
MaterialInsert pin, jackOrichalcum
Crown springBeryllium copper
