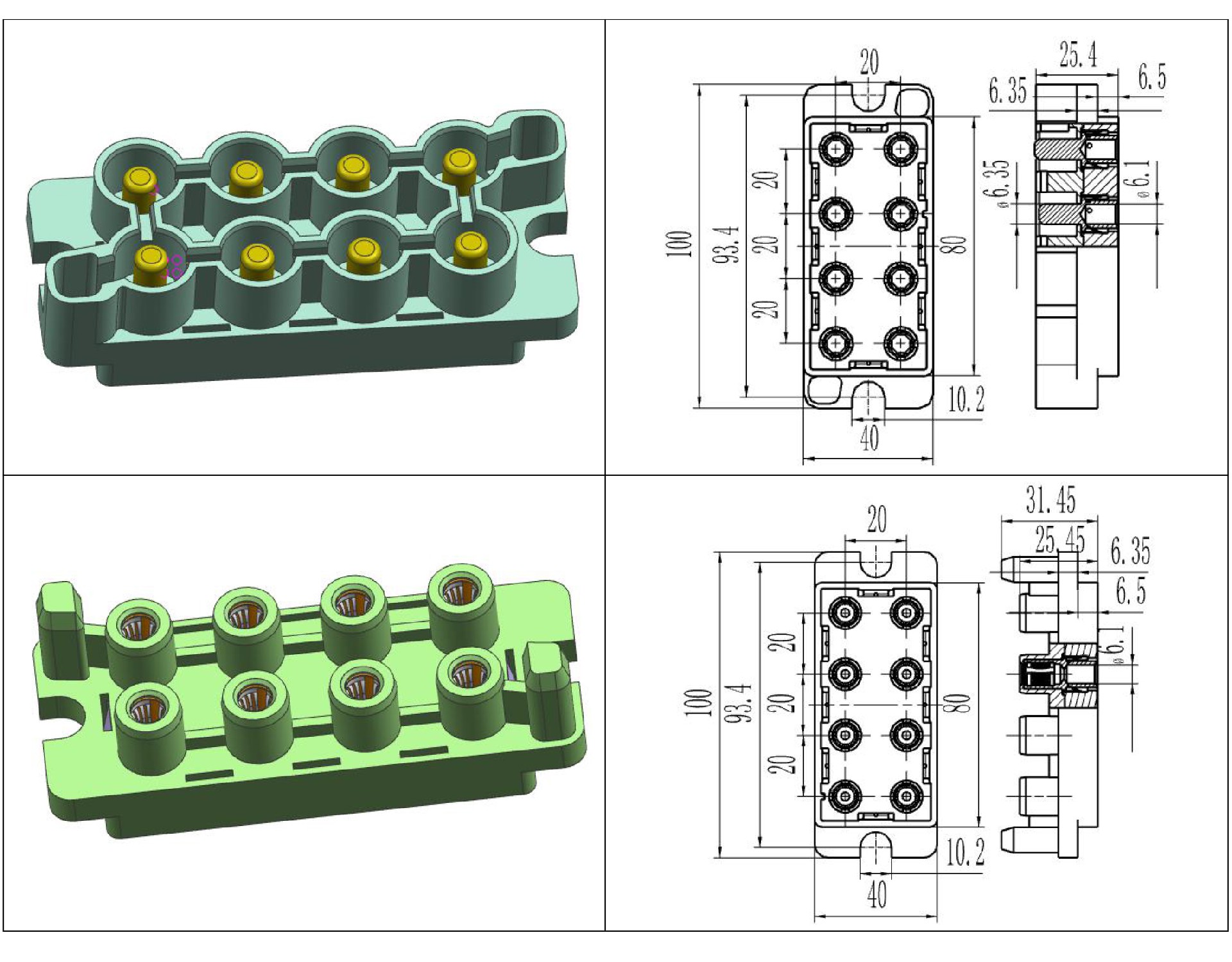

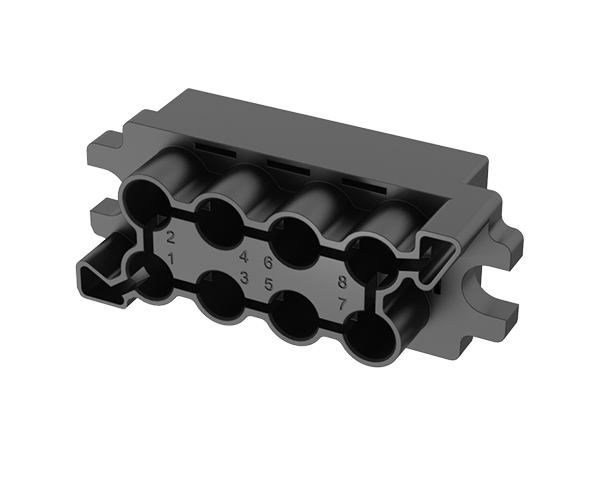

CNT01-E8 Power Connector
CNT01-E8 Power Connector
CNT01-E8 Power Connector
Model P end (needle end): SZCNT01-E-8P S End (hole end): SZCNT01-E-8S
Contact Us
Details
Operating Temperature-55°C~+125°CRelative Humidity98%（40°C）
Insulation Resistance≥3000 MΩ(Normal)Mechanical life1000 times
Shell MaterialPET+30%GF UL94-V0
Contact memberSpecificationsPower contact
8#
Quantity8
Rated current75A
Contact resistance

0.7mΩ

Voltage resistance value1500V
Surface treatmentSilver plating on nickel base
End connection formWelding, crimping, PCB connection
MaterialInsert pin, jackOrichalcum
Crown springBeryllium copper
