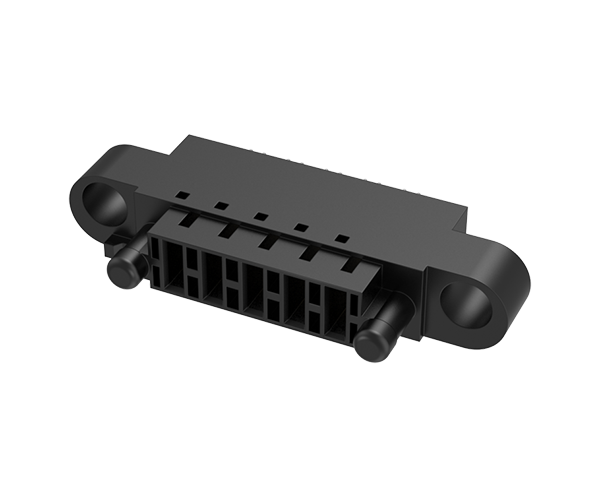

CNT01-F-5 Power Connector
CNT01-F-5 Power Connector
CNT01-F-5 Power Connector

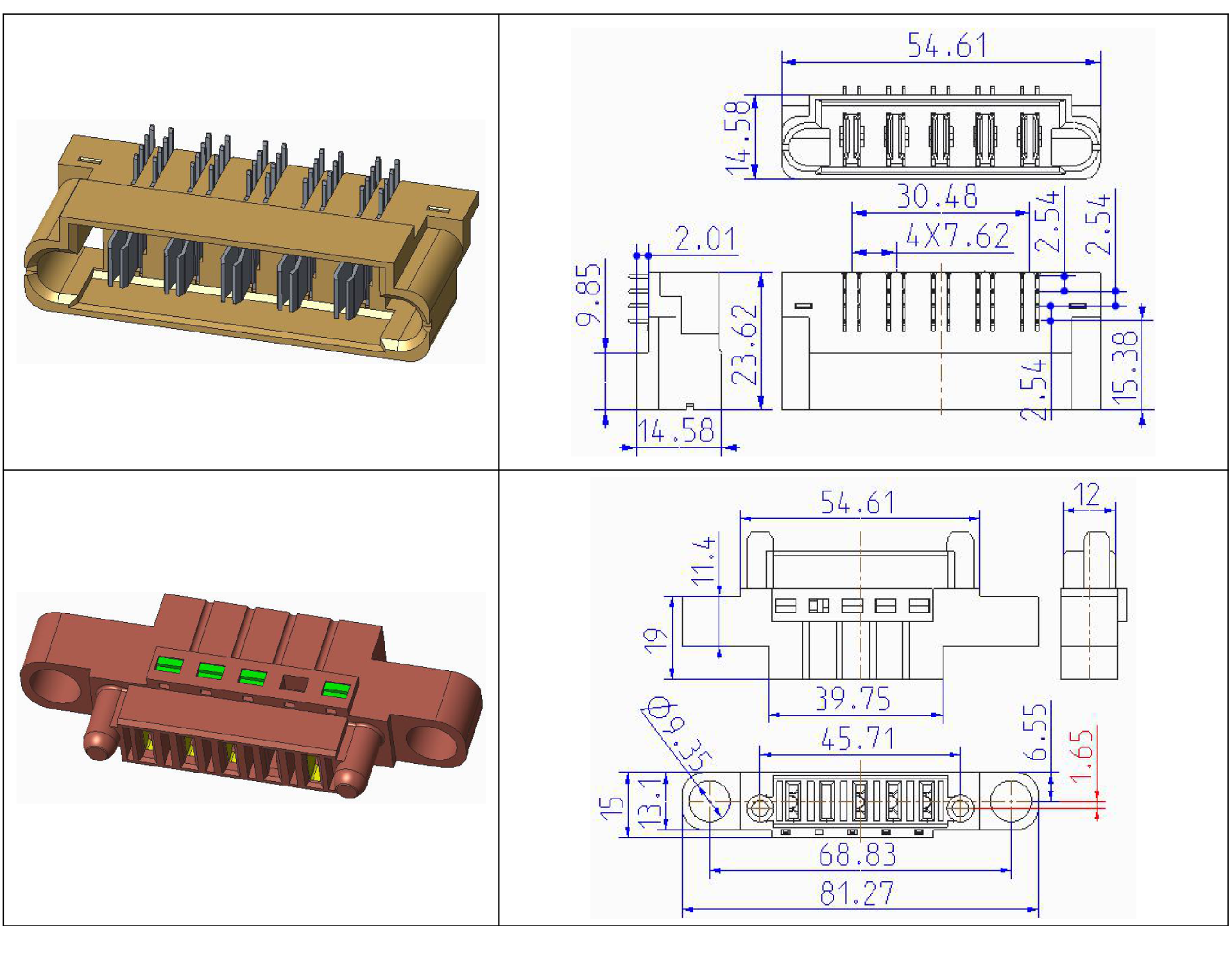

Model P end (needle end): CNT01-F-5P
S-end (hole end): CNT01-F-5S
Contact Us
Details
Operating Temperature-55°C~+125°CRelative Humidity98%（40°C）
Insulation Resistance≥3000 MΩ(Normal)Mechanical life1000 times
Shell MaterialPET+30%GF UL94-V0
Contact PieceSpecificationsElectric contact components
 0.5mm material thickness at the needle end and 0.4mm material thickness at the hole end (stamped parts)
Quantity5
Rated current55A
Contact resistance

2mΩ

Voltage resistance value3000VDC (center to center distance 7.62mm)
Surface treatmentGold plating on contact surface, tin plating on other surfaces
End connection formBoard connection
MaterialPin and socketHigh conductivity copper
