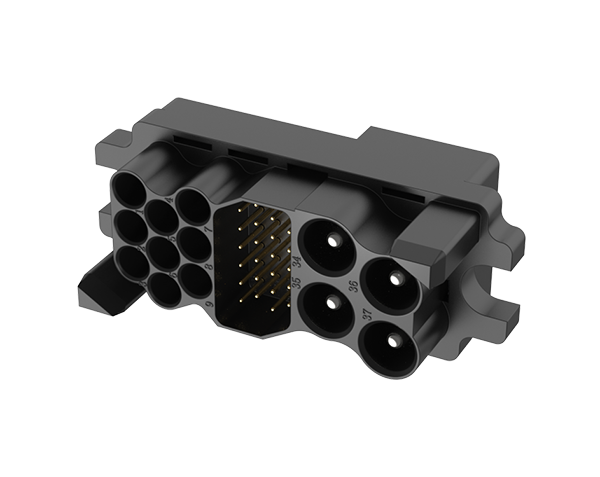

CNT01-37-B Power Connector
CNT01-37-B Power Connector
CNT01-37-B Power Connector
Model P end (needle end): CNT01-37PB
S-end (hole end): CNT01-37SB
Contact Us
Details
Operating Temperature-55°C~+125°CRelative Humidity

98%（40°C）

Insulation Resistance≥3000 MΩ(Normal)Mechanical life1000 times
Shell MaterialPET+30%GF UL94-V0
Contact memberSpecificationsElectric contact componentsSignal contact components
8#12#20#
Quantity4924
Rated current75A35A5A
Contact resistance

0.7mΩ

1.6mΩ6.7mΩ
Voltage resistance value1500V1000V
Surface treatmentNickel based silver platingNickel based gold plating
End connection formCrimp joint, plate joint, welding
MaterialPin and socketBrass
Crown springBeryllium copper
