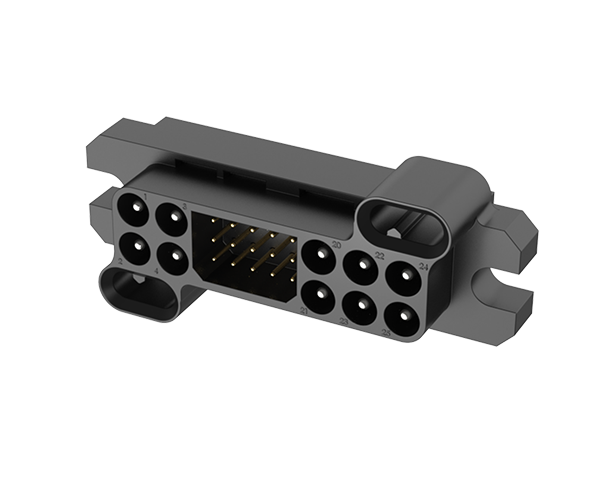

CNT01-25A Power Connector
CNT01-25A Power Connector
CNT01-25A Power Connector
Model P end (needle end): CNT01-25AP
S-end (hole end): CNT01-25AS
Contact Us
Details
Operating Temperature-55°C~+125°CRelative Humidity98%（40°C）
Insulation Resistance≥3000 MΩ(Normal)Mechanical life1000 times
Shell MaterialPET+30%GF UL94-V0
Contact memberSpecificationsElectric contact componentsSignal contact components
12#20#
Quantity1015
Rated current35A5A
Contact resistance

1.6mΩ

6.7mΩ
Voltage resistance value1500V1000V
Surface treatmentNickel based silver platingNickel based gold plating
End connection formThreaded connection, welding
MaterialPin and socketBrass
Crown springBeryllium copper
