Shenzhen Connector Technology Co., Ltd

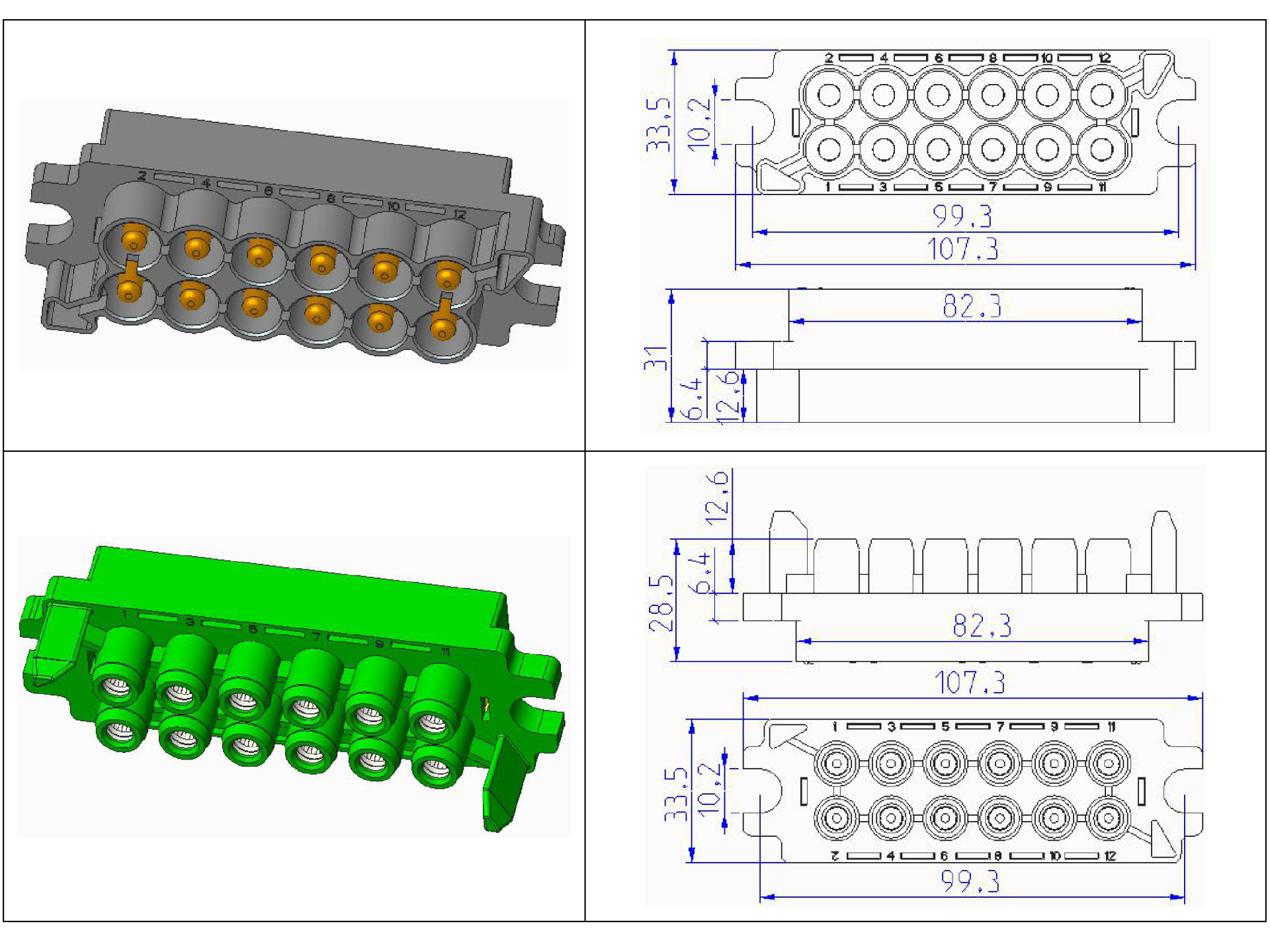

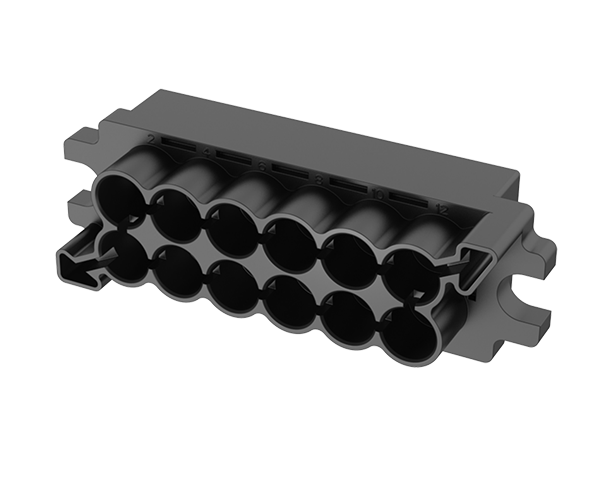

CNT01-12Y Power Connector
CNT01-12Y Power Connector
CNT01-12Y Power Connector
Model P end (pin end): CNT01-12YP
S end (hole end): CNT01-12YS
Contact Us
Details
Operating Temperature-55°C~+125°CRelative Humidity98%（40°C）
Insulation Resistance≥3000 MΩ(Normal)Mechanical life1000 times
Shell MaterialPET+30%GF UL94-V0
Contact memberSpecificationsElectric contact components
φ5.0#
Quantity12
Rated current100A
Contact resistance

0.65mΩ

Voltage resistance value2500V
Surface treatmentNickel-plated silver base
End connection formCrimp
MaterialPin and socketBrass
Crown springBeryllium copper
