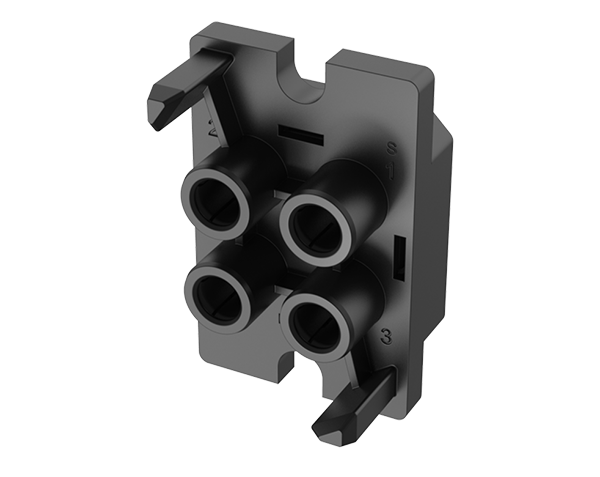

CNT01-4F State Grid Power Connector
CNT01-4F State Grid Power Connector
CNT01-4F State Grid Power Connector

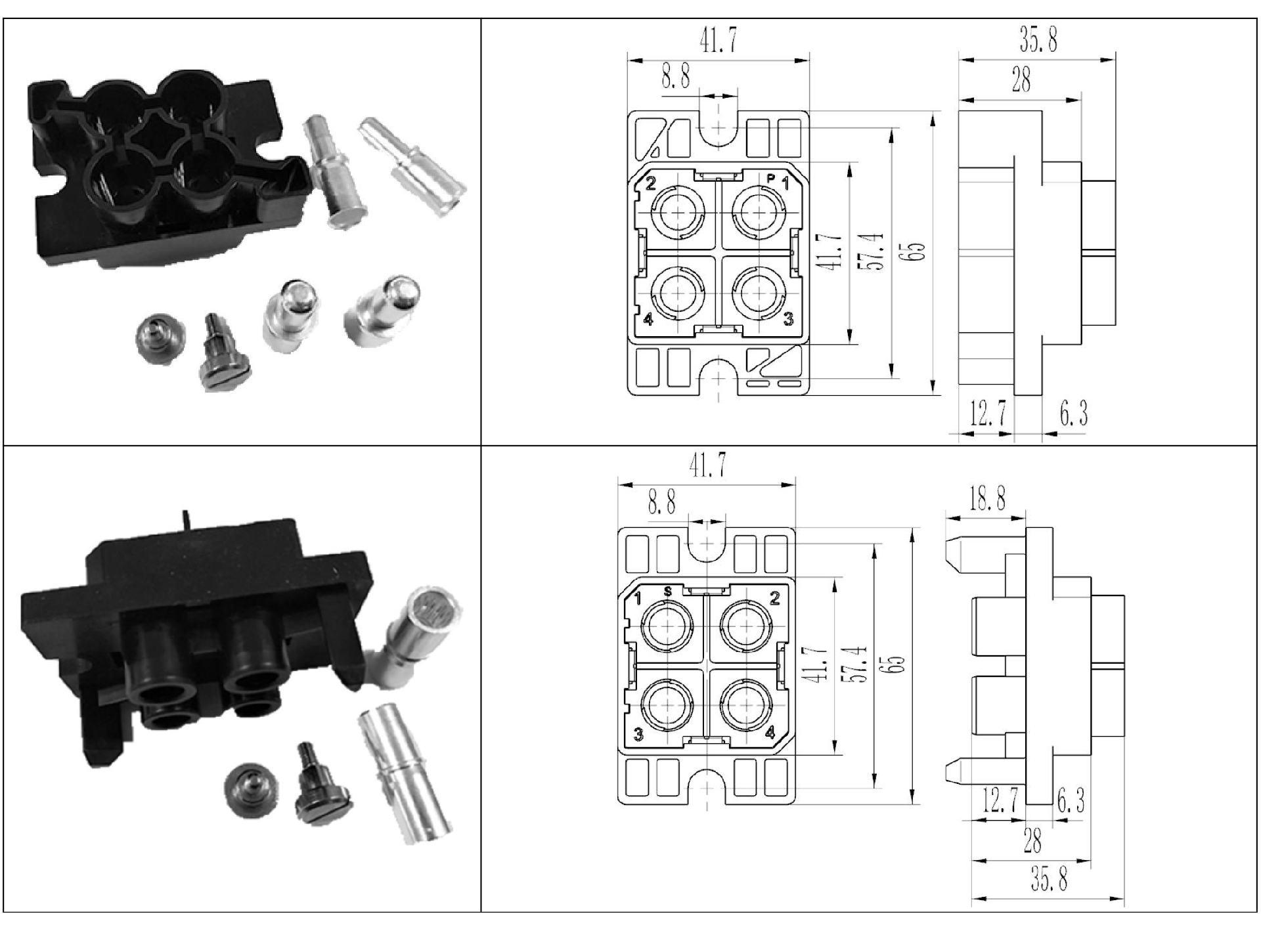

Model P end (pin end): CNT01-4F-P
S end (socket end): CNT01-4F-S
Contact Us
Details
Operating Temperature-55°C~+125°CRelative Humidity98%（40°C）
Insulation Resistance≥3000 MΩ(Normal)Mechanical life1000 times
Shell MaterialPC
Contact memberSpecificationsElectric contact components
Diameter φ8mm
Quantity4
Rated current75A
Contact resistance

0.65mΩ

Voltage resistance value1500V
Surface treatmentNickel based silver plating
End connection formCrimping and threaded connection
MaterialPin and socketSilver-plated copper
