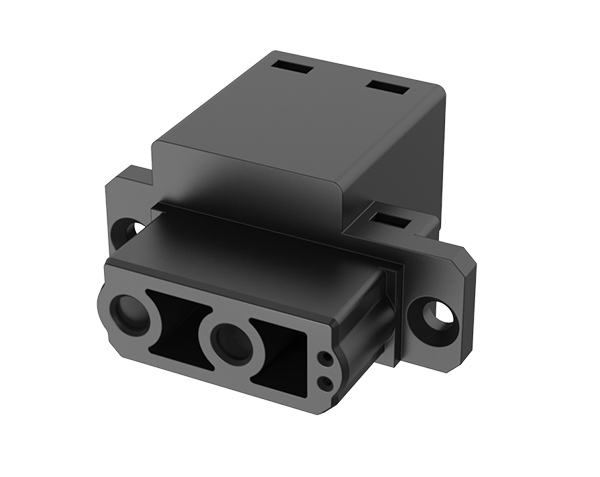

CNT01-07 Power Connector
CNT01-07 Power Connector
CNT01-07 Power Connector

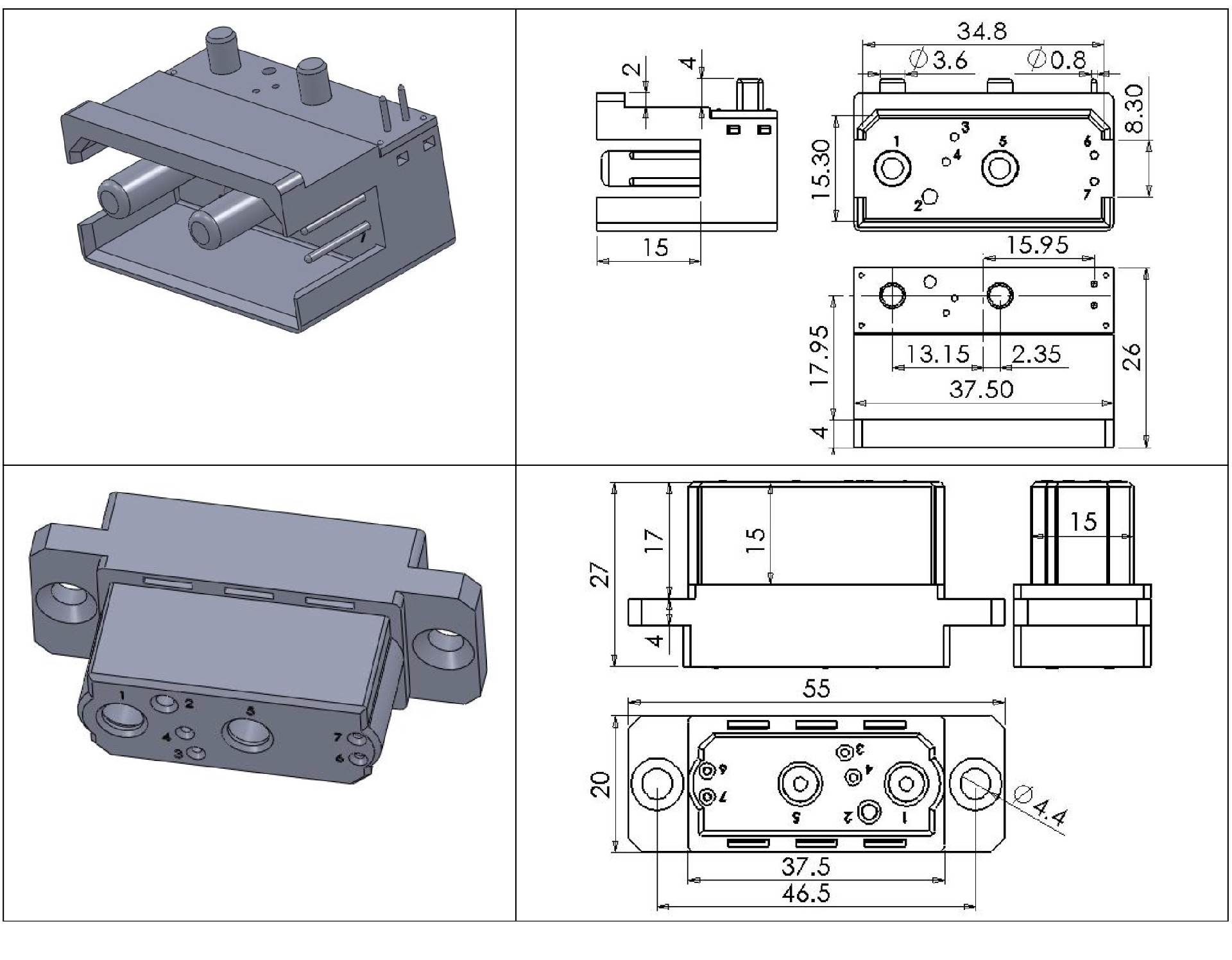

Model P end (needle end): CNT01-07P S End (hole end): CNT01-07S
Contact Us
Details
Operating Temperature-55°C~+125°CRelative Humidity98%（40°C）
Insulation Resistance≥3000 MΩ(Normal)Mechanical life1000 times
Shell MaterialPET+30%GF UL94-V0
Contact memberSpecificationsElectric contact componentsSignal contact components
Contact end with a diameter of 5mm, board connection end with a diameter of 3.6mm20#
Quantity22
Rated current75A5A
Contact resistance

0.65mΩ

6.7mΩ
Voltage resistance value1500V1000V
Surface treatmentGold plating on contact surface, tin plating on other surfaces

End connection formCrimping and PCB connection
MaterialPin and socketBrass
Crown springBeryllium copper
