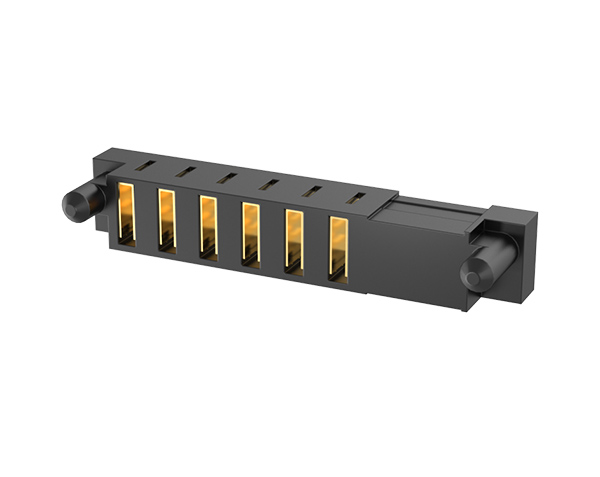

CNT01-F-6+24 Power Connector
CNT01-F-6+24 Power Connector
CNT01-F-6+24 Power Connector

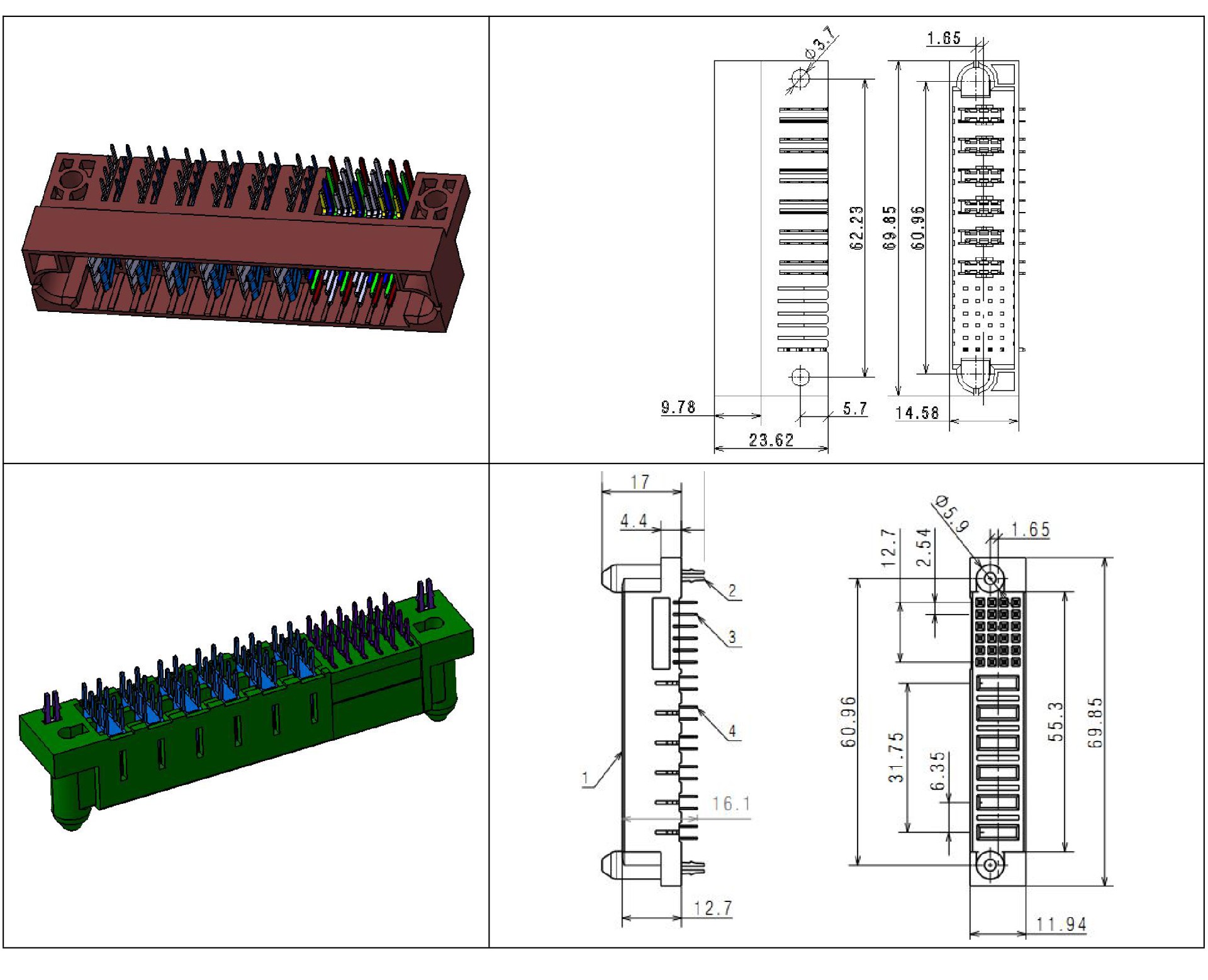

Model P end (needle end): CNT01-F-6+24-P S End (hole end): CNT01-F-6+24-S
Contact Us
Details
Operating Temperature-55°C~+125°CRelative Humidity98%（40°C）
Insulation Resistance≥3000 MΩ(Normal)Mechanical life1000 times
Shell MaterialPET+30%GF UL94-V0
Contact memberSpecificationsElectric contact componentsSignal contact components
t=0.5/0.4 mmt=0.64X0.64mm
Quantity624
Rated current55A3A
Contact resistance

2mΩ

20mΩ
Voltage resistance value2500VDC (center to center distance 6.35mm)1000VDC (center distance 2.54mm)
Surface treatmentGold plating on contact surface, tin plating on other surfaces

End connection formBoard connection
MaterialPin and socketHigh conductivity copper
