Shenzhen Connector Technology Co., Ltd

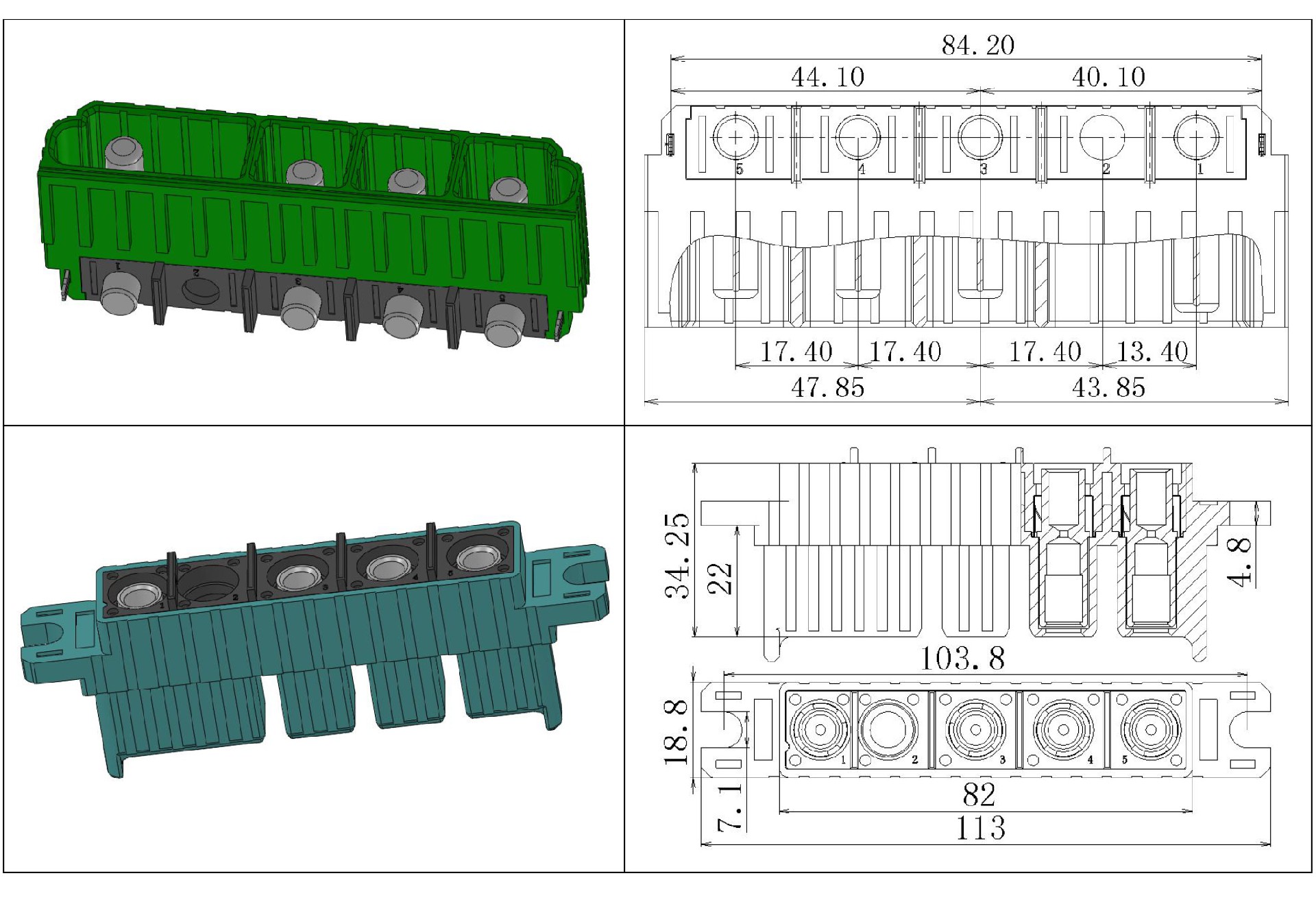

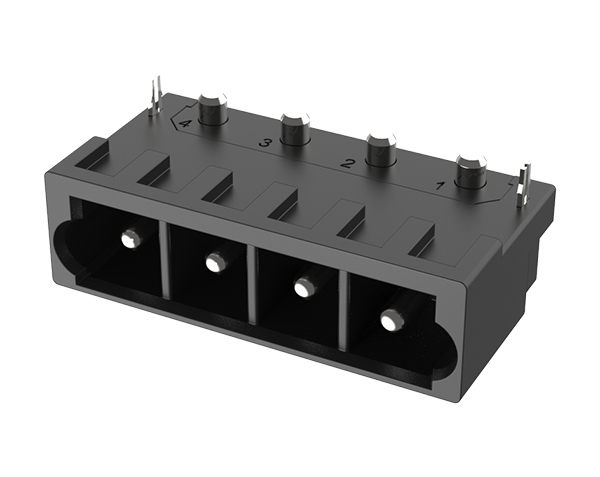

CNT01-05A Power Connector
CNT01-05A Power Connector
CNT01-05A Power Connector
Model P end (needle end): CNT01-05A-P S End (hole end): CNT01-05A-S
Contact Us
Details
Operating Temperature-55°C~+125°CRelative Humidity98%（40°C）
Insulation Resistance≥3000 MΩ(Normal)Mechanical life1000 times
Shell MaterialPET+30%GF UL94-V0
Contact memberSpecificationsElectric contact components
4#(Ø6.35)
Quantity5
Rated current120A
Contact resistance

0.6mΩ


Voltage resistance value1500V
Surface treatmentNickel based silver plating
End connection formCrimping and PCB connection
MaterialPin and socketBrass
Crown springBeryllium copper
