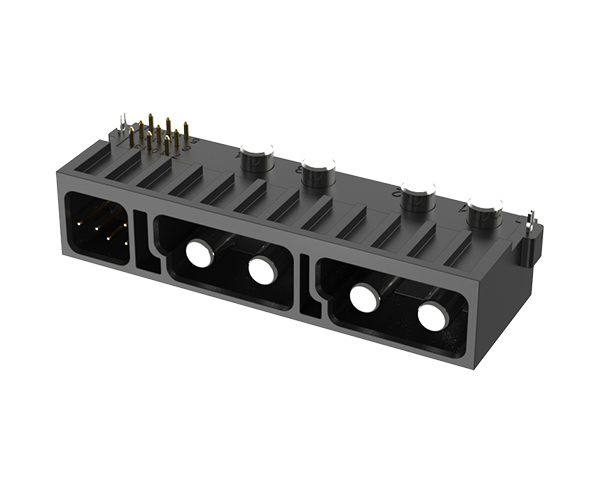

CNT01-4+9 Power Connector
CNT01-4+9 Power Connector
CNT01-4+9 Power Connector

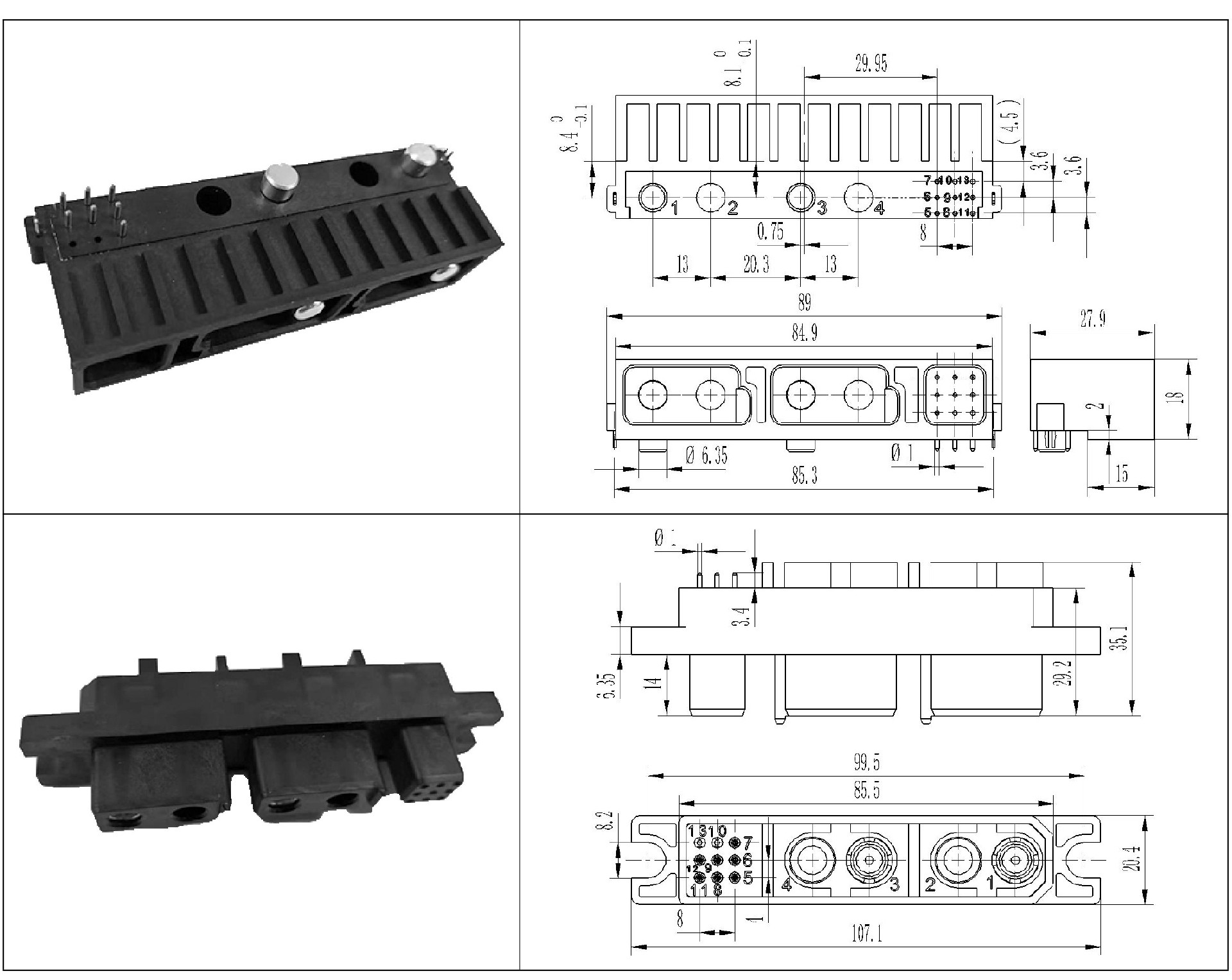

Model P end (needle end): CNT01-4+9-P S End (hole end): CNT01-4+9-S
Contact Us
Details
Operating Temperature-55°C~+125°CRelative Humidity98%（40°C）
Insulation Resistance≥3000 MΩ(Normal)Mechanical life1000 times
Shell MaterialPET+30%GF UL94-V0
Contact memberSpecificationsElectric contact componentsSignal contact components
4#(Ø6.35)20#
Quantity27
Rated current120A5A
Contact resistance

0.6mΩ

6.7mΩ
Voltage resistance value1500V1000V
Surface treatmentNickel based silver platingNickel based gold plating
End connection formCrimping, soldering, PCB connection
MaterialPin and socketBrass
Crown springBeryllium copper
