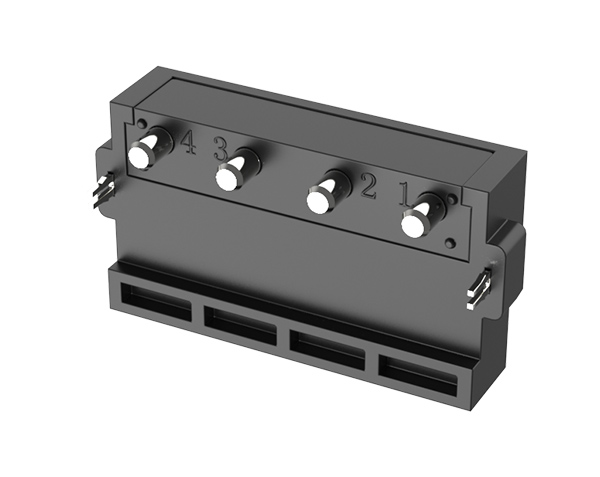

CNT01-04G State Grid Power Connector
CNT01-04G State Grid Power Connector
CNT01-04G State Grid Power Connector

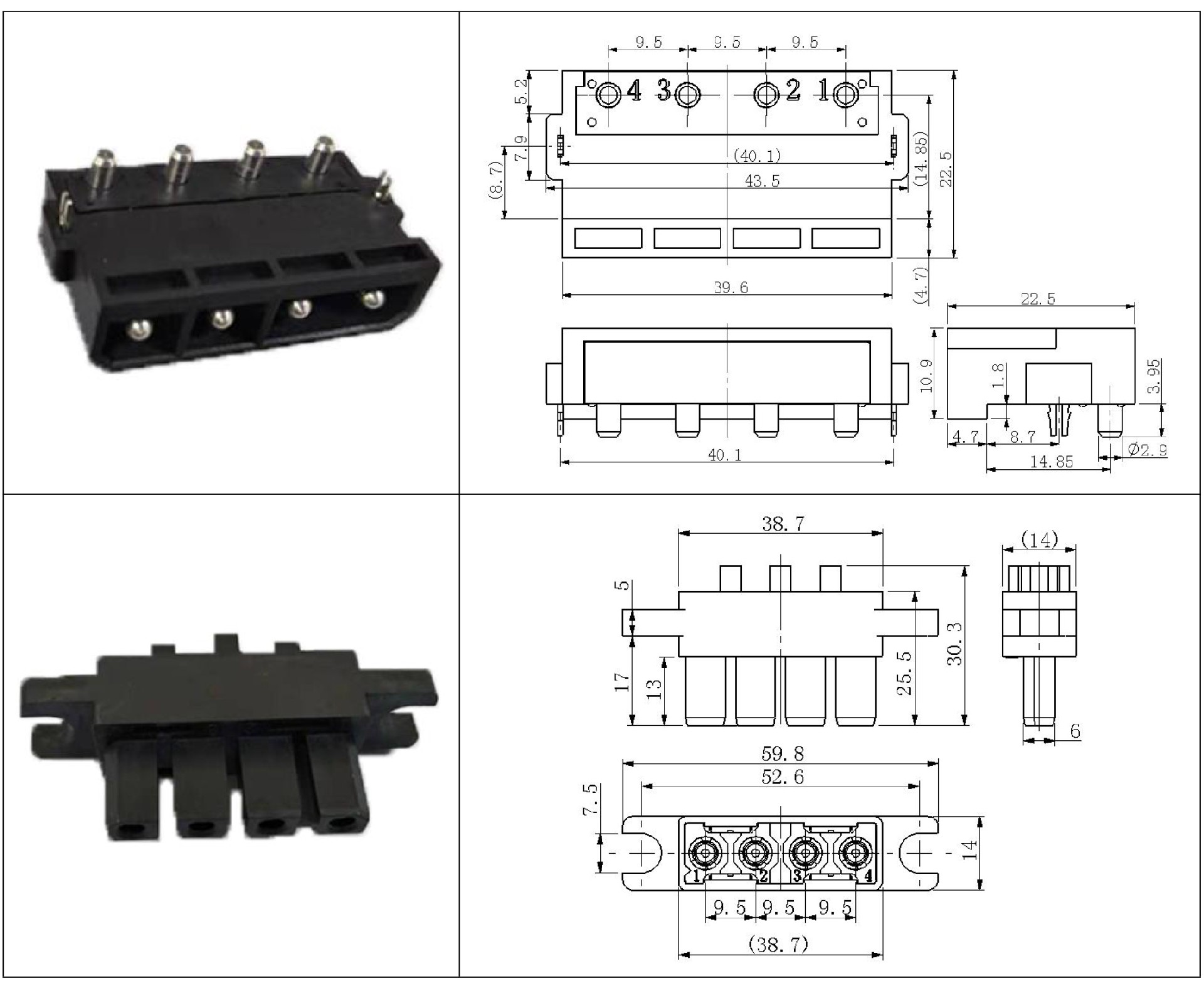

Model P end (needle end): CNT01-04G-P End (hole end): CNT01-04G-S
Contact Us
Details
Operating Temperature-55°C~+125°CRelative Humidity98%（40°C）
Insulation Resistance≥3000 MΩ(Normal)Mechanical life1000 times
Shell MaterialPA6T+20%GF UL94-V0
Contact memberSpecificationsElectric contact components
φ3.0mm
Quantity4
Rated current45A
Contact resistance

1.6mΩ

Voltage resistance value1500V
Surface treatmentNickel based silver plating
End connection formCrimping and welding
MaterialPin insertion、SocketSilver-plated copper
