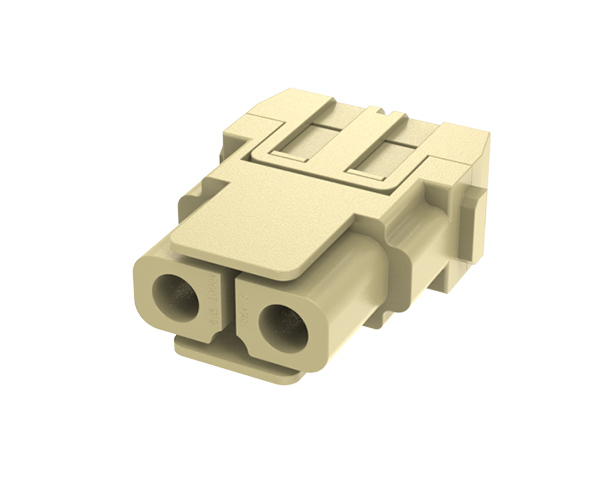

CNT01-2A power connector
CNT01-2A power connector
CNT01-2A power connector

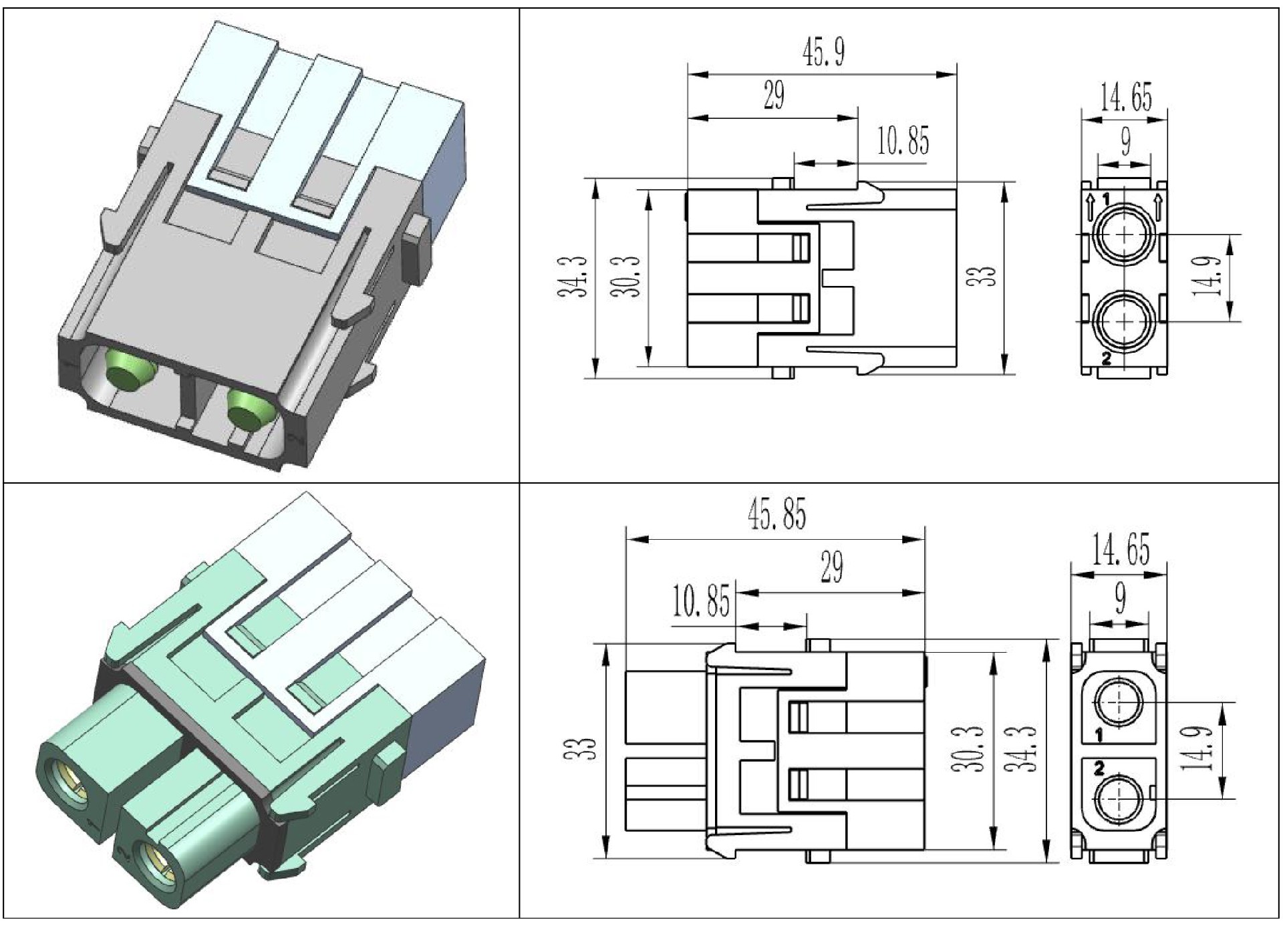

Model P end (needle end): CNT01-2A-P End (hole end): CNT01-2A-S
Contact Us
Details
Operating Temperature-55°C~+125°CRelative Humidity98%（40°C）
Insulation Resistance≥3000 MΩ(Normal)Mechanical life1000 times
Shell MaterialPA6T+20%GF UL94-V0
Contact memberSpecificationsElectric contact components
φ6.0mm
Quantity2
Rated current120A
Contact resistance0.62mΩ
Voltage resistance value1500V
Surface treatmentNickel based silver plating
End connection formCrimping and welding
MaterialPin insertion、SocketBrass, phosphor copper
//
