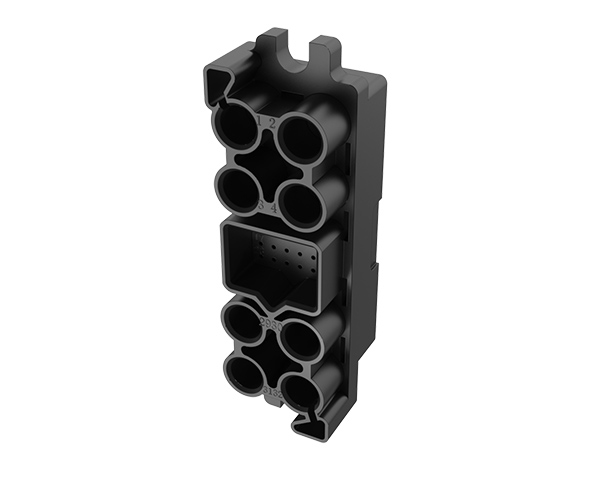

CNT01-32 State Grid Power Connector
CNT01-32 State Grid Power Connector
CNT01-32 State Grid Power Connector
Model P end (pin end): CNT01-32P S end (socket end): CNT01-32S
Contact Us
Details
Operating Temperature-55°C~+125°CRelative Humidity98%（40°C）
Insulation Resistance≥3000 MΩ(Normal)Mechanical life1000 times
Shell MaterialPA6T+20%GF UL94-V0
Contact memberSpecificationsPower contact componentsSignal contact components
8#20#
Quantity824
Rated current75A5A
Contact resistance0.7mΩ6.7mΩ
Voltage resistance value1500V1000V
Surface treatmentNickel based silver platingNickel based gold plating
End connection formCrimp joint, board joint
MaterialPin and socketBrass
Crown springBeryllium copper
